AOV11 Series

Catalog

MOSFET N-CH 600V 650MA/8A 4DFN

Part	Supplier Device Package	Mounting Type	FET Type	Rds On (Max) @ Id, Vgs	Package / Case	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Power Dissipation (Max)	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Max]	Operating Temperature [Min]

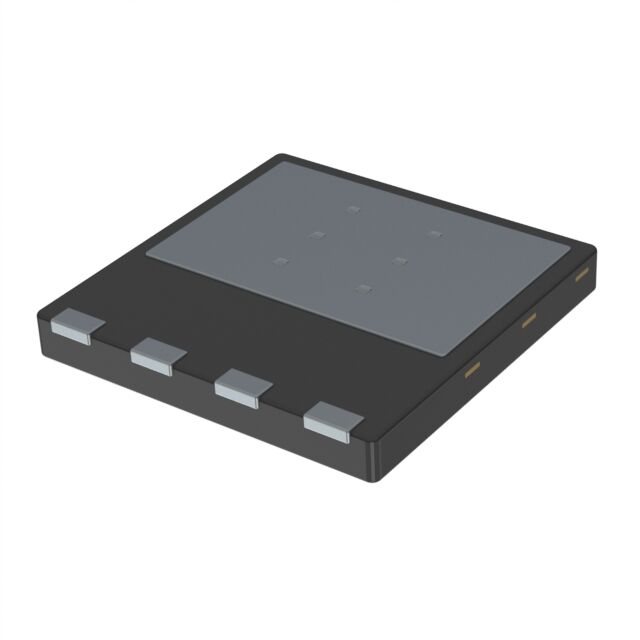

Alpha & Omega Semiconductor Inc. AOV11S60	4-DFN (8x8)	Surface Mount	N-Channel	500 mOhm	4-PowerTSFN	MOSFET (Metal Oxide)	4.1 V	8 A 650 mA	8.3 W	156 W	30 V	11 nC	600 V	10 V	545 pF	150 °C	-55 °C
