HMC252 Series
Manufacturer: Analog Devices
Beta
⌘K
IC RF SWITCH SP8T 2.5GHZ 24QSOP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Test Frequency | Frequency Range [Max] | Frequency Range [Min] | Supplier Device Package | Insertion Loss | Impedance | RF Type | IIP3 | Topology | Package / Case | Package / Case [custom] | Mounting Type | Isolation | Supplied Contents | Frequency [Max] | Frequency [Min] | Type | For Use With/Related Products | Voltage - Supply | Circuit | P1dB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

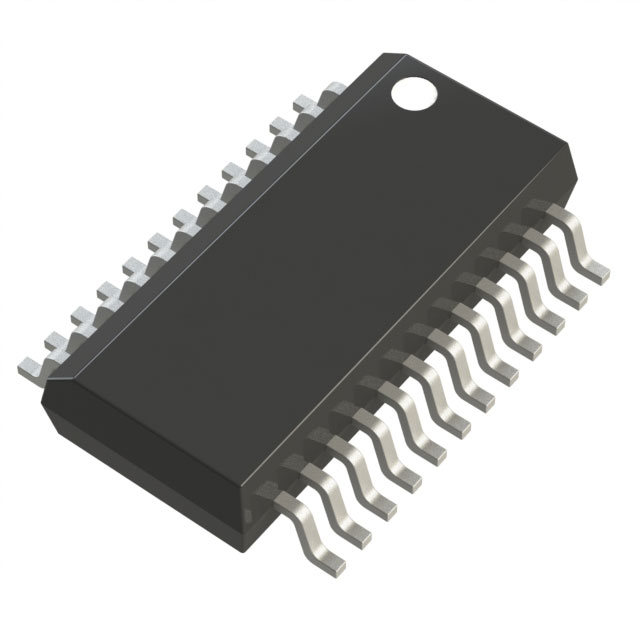

 Analog Devices | 85 °C | -40 °C | 1 GHz | 2.5 GHz | 0 Hz | 24-QSOP | 1 dB | 50 Ohms | CDMA | 46 dBm | Absorptive | 24-SSOP | 0.154 " 3.9 mm | Surface Mount | 40 dB | ||||||||

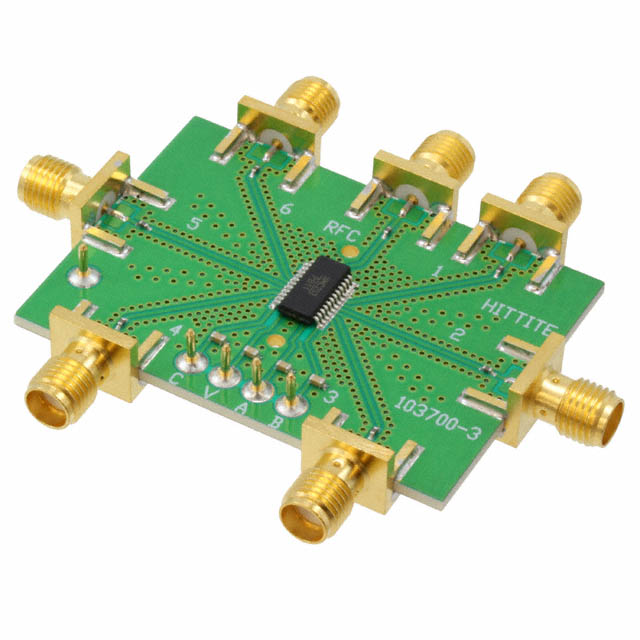

 Analog Devices | Board(s) | 3 GHz | 0 Hz | Switch SP6T | HMC252QS24 | ||||||||||||||||||
Analog Devices | 85 °C | -40 °C | 3 GHz | 3 GHz | 0 Hz | 24-QSOP | 1.3 dB | 50 Ohms | General Purpose | 46 dBm | Absorptive | 24-SSOP | 0.154 " 3.9 mm | Surface Mount | 29 dB | 3.3 V 5 V | SP6T | 24 dBm | |||||
Analog Devices | 85 °C | -40 °C | 3 GHz | 3 GHz | 0 Hz | 24-QSOP | 1.3 dB | 50 Ohms | General Purpose | 46 dBm | Absorptive | 24-SSOP | 0.154 " 3.9 mm | Surface Mount | 29 dB | 3.3 V 5 V | SP6T | 24 dBm |
