895-059 Series
Manufacturer: EDAC Inc.
Beta
⌘K

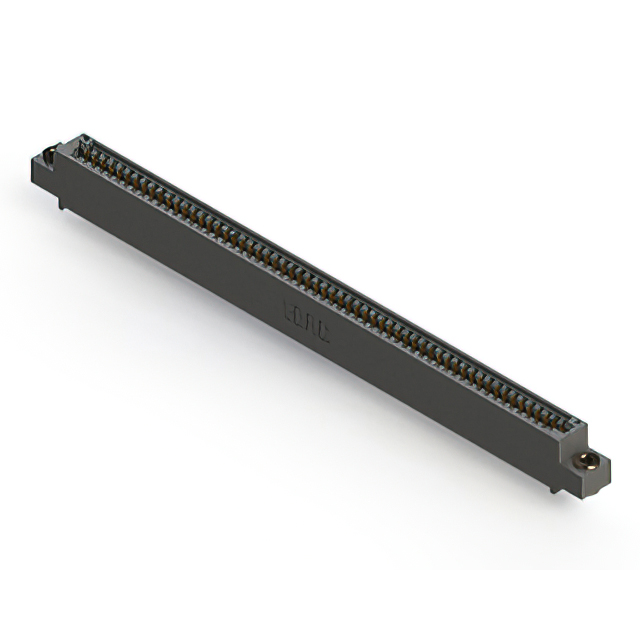

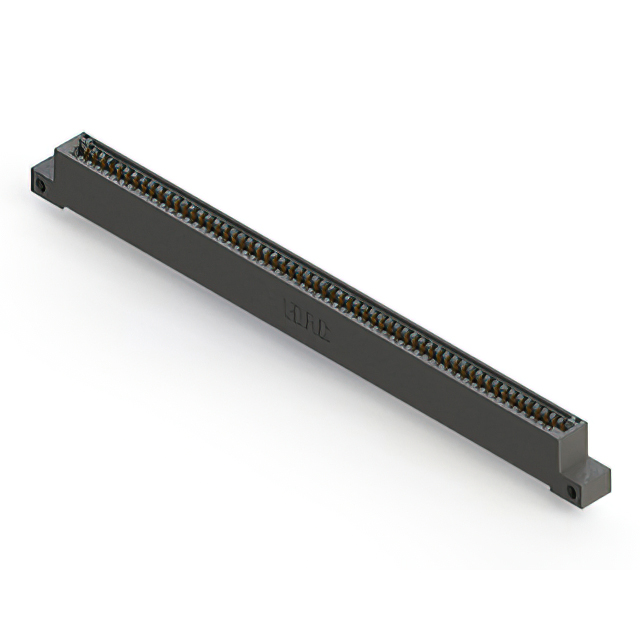

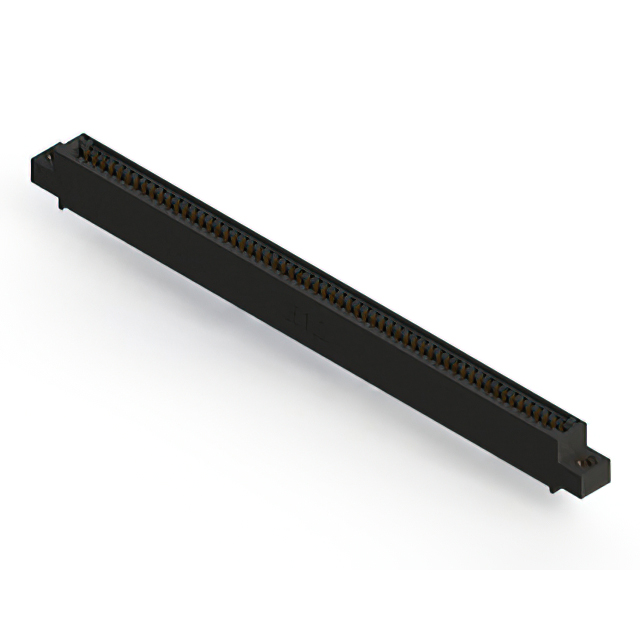

CONN EDGE SINGLE FML 59POS 0.100
| Part | Material - Insulation | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Color | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Type | Mounting Type | Pitch | Pitch | Contact Material | Contact Finish | Card Type | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Solder | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Solder | 0.116 " | 2.95 mm | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Solder | 0.128 " | 3.25 mm | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Solder | 0.116 " | 2.95 mm | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Solder | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Wire Wrap | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Wire Wrap | 0.128 " | 3.25 mm | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Wire Wrap | 0.116 " | 2.95 mm | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Solder | 0.128 " | 3.25 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Black | Single | 59 | 59 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 1 | Cantilever | Through Hole | 0.1 " | 2.54 mm | Copper Alloy | Gold | Non Specified - Single Edge | Wire Wrap | 0.128 " | 3.25 mm |
