L6472 Series

Catalog

FULLY INTEGRATED MICROSTEPPING MOTOR DRIVER WITH MOTION ENGINE AND SPI

Part	Step Resolution [Min]	Step Resolution [Max]	Current - Output	Motor Type - Stepper	Function	Supplier Device Package	Interface	Voltage - Supply	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Applications	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Technology
STMicroelectronics L6472PD	1	0.0625	3 A	Bipolar	Driver - Fully Integrated Control and Power Stage	PowerSO-36 Slug Up	SPI	3.3 V 5 VDC	45 V	8 V	-40 °C	150 °C	Half Bridge (4)	General Purpose	36-PowerBSSOP	11 mm	0.433 "	Surface Mount	DMOS
STMicroelectronics L6472PDTR	1	0.0625	3 A	Bipolar	Driver - Fully Integrated Control and Power Stage	PowerSO-36 Slug Up	SPI	3.3 V 5 VDC	45 V	8 V	-40 °C	150 °C	Half Bridge (4)	General Purpose	36-PowerBSSOP	11 mm	0.433 "	Surface Mount	DMOS

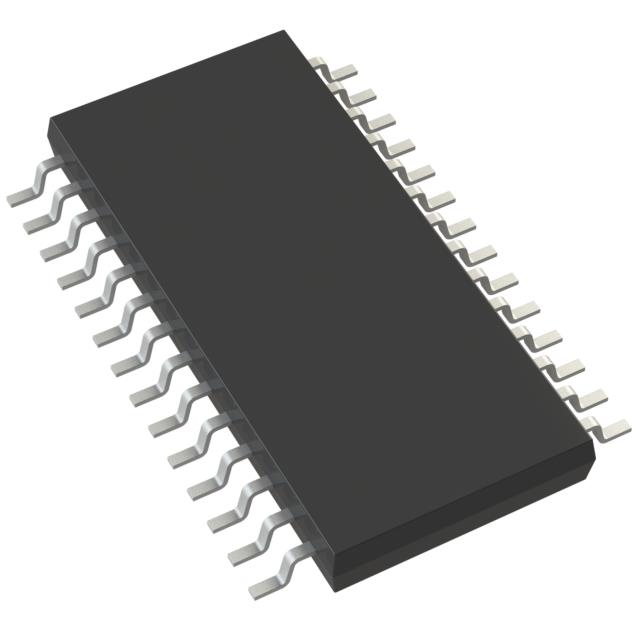

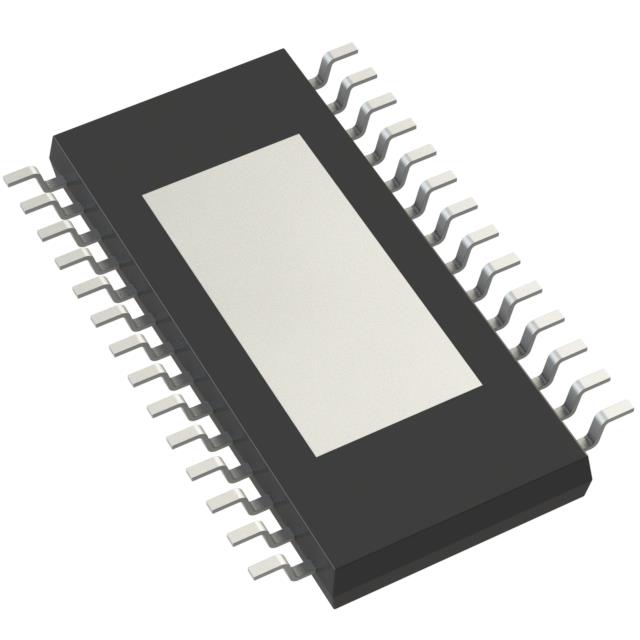

STMicroelectronics L6472H	1	0.0625	3 A	Bipolar	Driver - Fully Integrated Control and Power Stage	28-HTSSOP	SPI	3.3 V 5 VDC	45 V	8 V	-40 °C	150 °C	Half Bridge (4)	General Purpose	28-TSSOP (0.173" 4.40mm Width) Exposed Pad			Surface Mount	DMOS
STMicroelectronics L6472HTR	1	0.0625	3 A	Bipolar	Driver - Fully Integrated Control and Power Stage	28-HTSSOP	SPI	3.3 V 5 VDC	45 V	8 V	-40 °C	150 °C	Half Bridge (4)	General Purpose	28-TSSOP (0.173" 4.40mm Width) Exposed Pad			Surface Mount	DMOS
