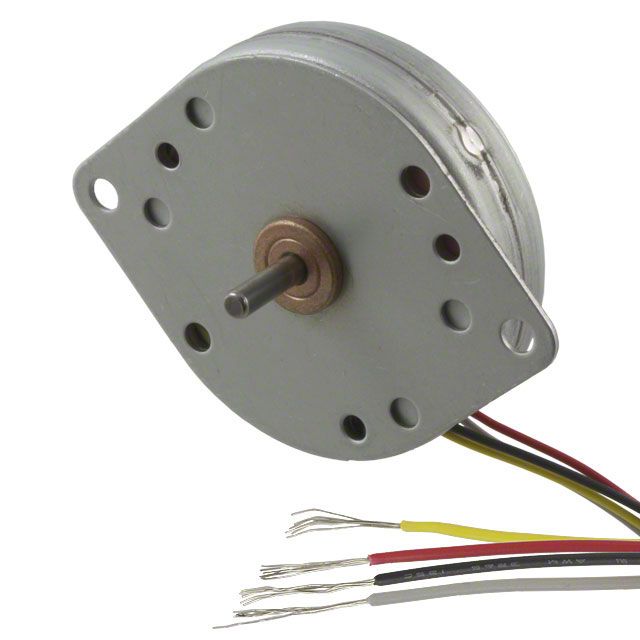

44M100 Series
Manufacturer: Portescap
Beta
⌘K
STEPPER MOTOR PM BIPOLAR 12V
| Part | Weight [custom] | Weight [custom] | Rotor Inertia | Size / Dimension [diameter] | Size / Dimension | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination Style | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Accuracy | Steps per Revolution | Coil Resistance | Voltage - Rated | Step Angle | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.177 lb | 80.29 g | 8.2 gcm˛ | 1.732 in 44 mm | Round | 6.6 oz-in | 46.6 mNm | Permanent Magnet | 0 °C | 60 °C | Round Shaft | Wire Leads | 1.95 in | 49.48 mm | 0.118 in | 3 mm | 11 % | 100 | 70 Ohms | 12 VDC | 3.6 ° | 0.45 in | 11.43 mm | Bipolar |
