MIC2033 Series
Manufacturer: Microchip Technology
Beta
⌘K
IC PWR SWITCH P-CHAN 1:1 SOT23-6
| Part | Current - Output (Max) [Max] | Fault Protection | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Rds On (Typ) | Output Configuration | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Ratio - Input:Output [custom] | Input Type | Voltage - Supply (Vcc/Vdd) | Supplier Device Package | Switch Type | Features | Number of Outputs | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 800 mA | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | SOT-23-6 | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | SOT-23-6 | |
Microchip Technology | 1.2 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | SOT-23-6 | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | SOT-23-6 | |
 Microchip Technology | 1 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | SOT-23-6 | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | SOT-23-6 | |
 Microchip Technology | 800 mA | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | SOT-23-6 | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | SOT-23-6 | |

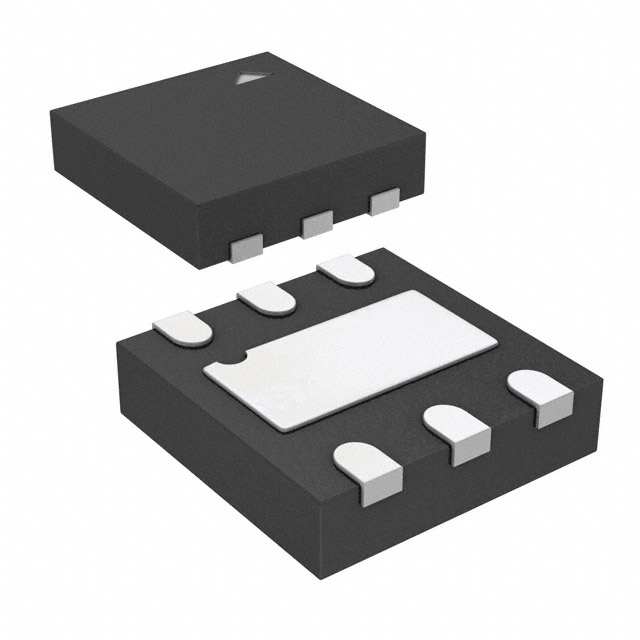

 Microchip Technology | 1 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | 6-TDFN (2x2) | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | 6-UFDFN Exposed Pad | |
Microchip Technology | 1 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | 6-TDFN (2x2) | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | 6-UFDFN Exposed Pad | |
Microchip Technology | 1.2 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | 6-TDFN (2x2) | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | 6-UFDFN Exposed Pad | |
 Microchip Technology | 1 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | SOT-23-6 | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | SOT-23-6 | |
Microchip Technology | 550 mA | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | SOT-23-6 | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | SOT-23-6 | |
Microchip Technology | 1.2 A | Current Limiting (Fixed) Over Temperature UVLO | 2.5 V | 5.5 V | On/Off | 75 mOhm | High Side | P-Channel | -40 °C | 125 ¯C | 1:1 | Non-Inverting | 6-TDFN (2x2) | General Purpose | Slew Rate Controlled Status Flag | 1 | Surface Mount | 6-UFDFN Exposed Pad |
