TPC 055 Series

Catalog

DIN RAIL POWER SUPPLIES PRODUCT TYPE: AC/DC; PACKAGE STYLE: DIN-RAIL; OUTPUT POWER (W): 55; INPUT VOLTAGE: 85-264 VAC / 90-375 VDC; OUTPUT 1 (VDC): 24; OUTPUT 2 (VDC): N/A; OUTPUT 3 (VDC): N/A

Part	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	DC Voltage - Input (Max) [Max]	Approval Agency	Efficiency	Number of Outputs	Features	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Input Type	Current - Output (Max) [Max]
Traco Power TPC 055-124	55 W	Industrial ITE (Commercial)	70 °C	-25 °C	264 VAC	85 VAC	45 mm	3.8 "	3.54 "	96.5 mm	89.9 mm	1.77 in	375 V	CB cCSAus CE SIQ	87 %	1	Adjustable Output IP20 Universal Input	90 V	24 V	AC or DC	2.3 A

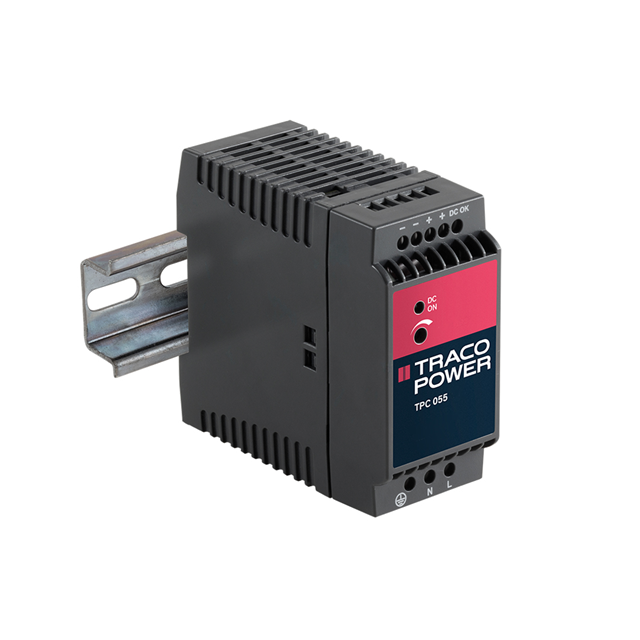

Traco Power TPC 055-148	55 W	Industrial ITE (Commercial)	70 °C	-25 °C	264 VAC	85 VAC	45 mm	3.8 "	3.54 "	96.5 mm	89.9 mm	1.77 in	375 V	CB cCSAus CE SIQ	87 %	1	Adjustable Output IP20 Universal Input	90 V	48 V	AC or DC	1.15 A
