LF25 Series

Catalog

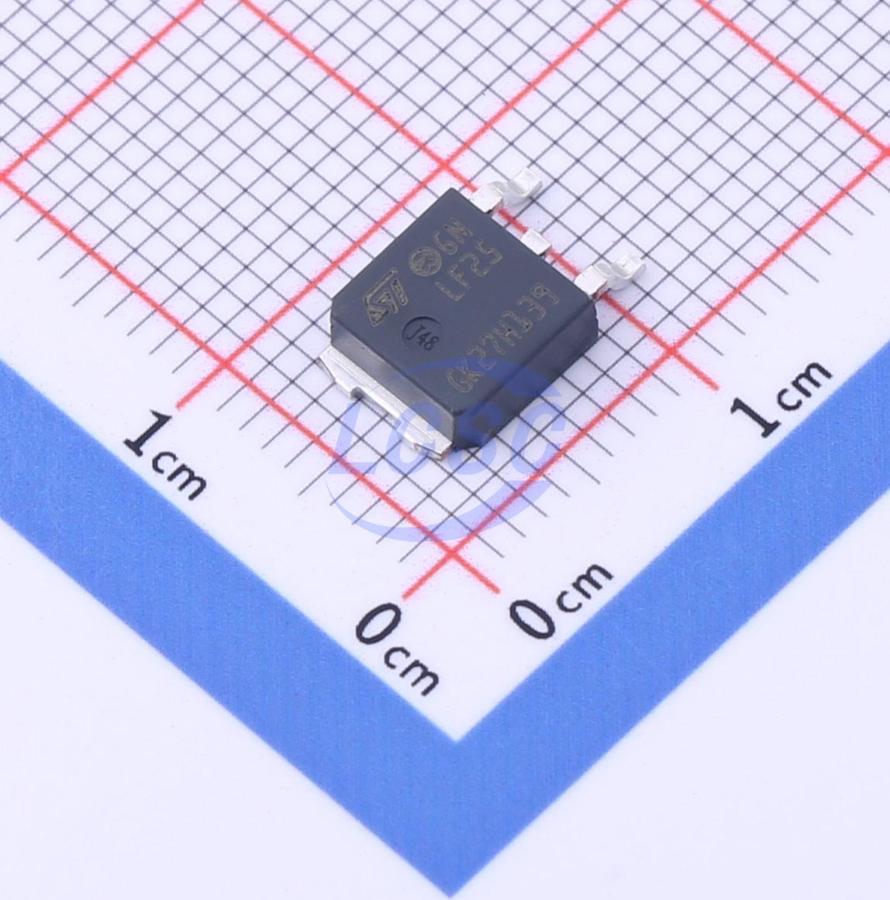

IC REG LINEAR 2.5V 500MA DPAK

Part	Current - Output	Supplier Device Package	Package / Case	PSRR [Max]	PSRR [Min]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Output Configuration	Number of Regulators	Current - Quiescent (Iq)	Mounting Type	Voltage - Output (Min/Fixed)	Control Features
STMicroelectronics LF25ABDT-TR	500 mA	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	82 dB	65 dB	Over Current Over Temperature	125 °C	-40 C	16 V	0.7 V	12 mA	Positive	1	1 mA	Surface Mount	2.5 V
STMicroelectronics LF25CDT-TR	500 mA	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	82 dB	65 dB	Over Current Over Temperature	125 °C	-40 C	16 V	0.7 V	12 mA	Positive	1	1 mA	Surface Mount	2.5 V
STMicroelectronics LF25CPT	500 mA	PPAK	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	82 dB	65 dB	Over Current Over Temperature	125 °C	-40 C	16 V	0.7 V	12 mA	Positive	1	1 mA	Surface Mount	2.5 V	Enable
STMicroelectronics LF25ABV	500 mA	TO-220	TO-220-3	82 dB	65 dB	Over Current Over Temperature	125 °C	-40 C	16 V	0.7 V	12 mA	Positive	1	1 mA	Through Hole	2.5 V
STMicroelectronics LF25CDT	500 mA	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	82 dB	65 dB	Over Current Over Temperature	125 °C	-40 C	16 V	0.7 V	12 mA	Positive	1	1 mA	Surface Mount	2.5 V
