EVAL6235Q Series

Three phase BLDC motor driver mounting the L6235Q

Catalog

Three phase BLDC motor driver mounting the L6235Q

Part	Secondary Attributes	Type	Embedded	Primary Attributes	Contents	Utilized IC / Part	Function
STMicroelectronics EVAL6235Q	Over Current Temperature Protection	Power Management		Motors (BLDC)	Board(s)	L6235	Motor Controller/Driver

Catalog

Three phase BLDC motor driver mounting the L6235Q

Description

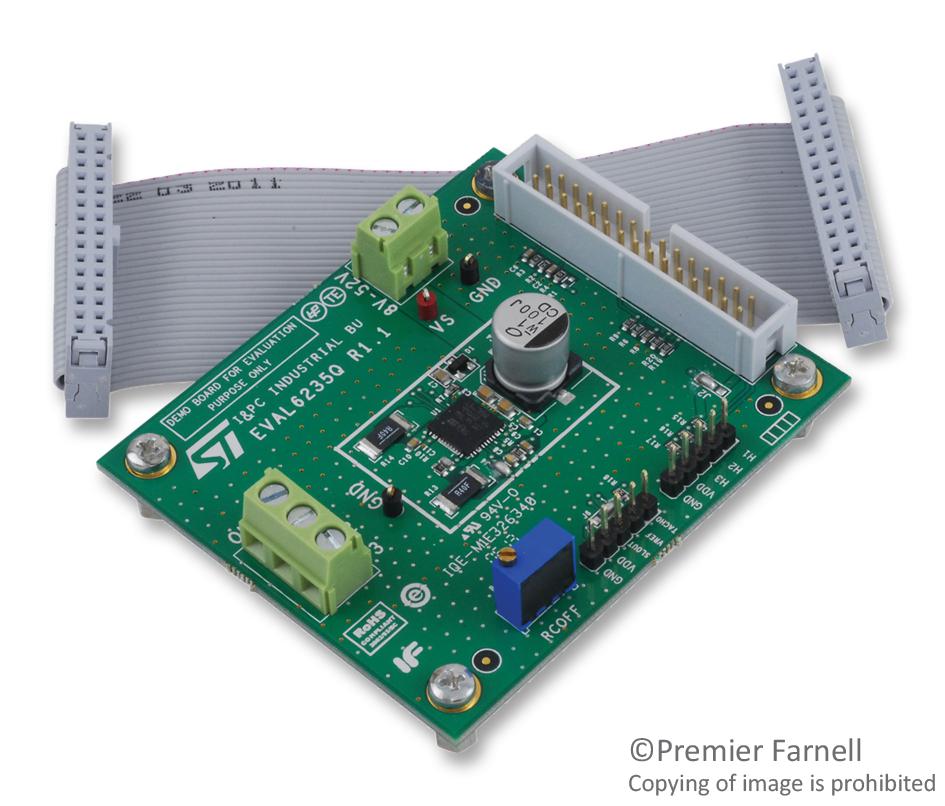

The EVAL6235Q is a 3-phase BLDC motor driver board that allows the user to test the L6235Q functions. The board can be driven using the STEVAL-PCC009V2 communication board and the PractiSPIN 2 evaluation software.
