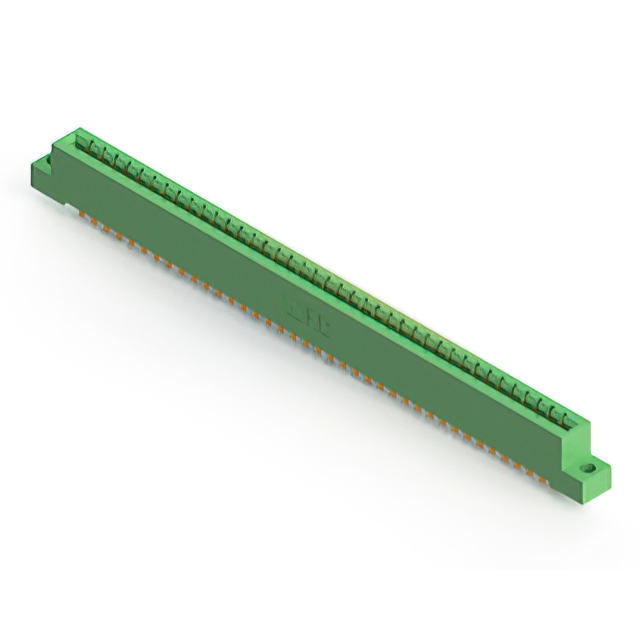

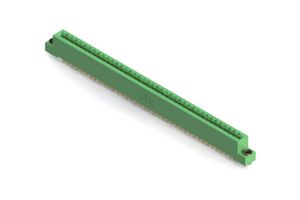

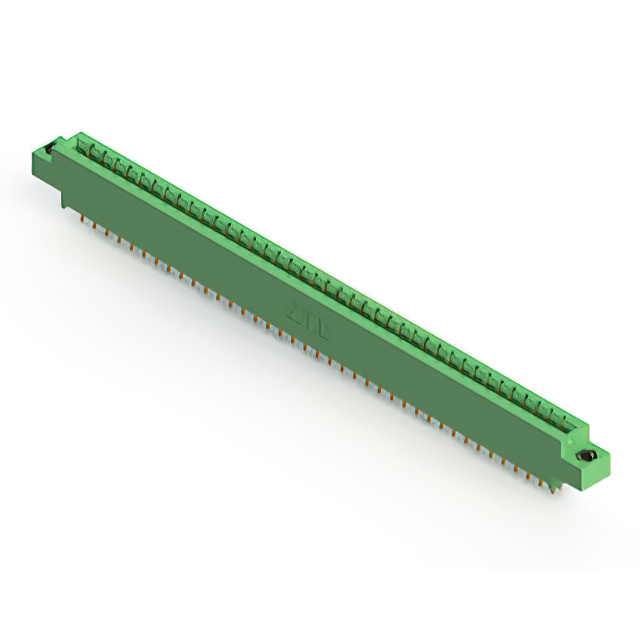

333-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 78POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Termination | Number of Positions | Read Out | Contact Finish | Mounting Type | Pitch | Pitch | Gender | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 78 | Dual | Gold | Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 78 | Dual | Gold | Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 78 | Dual | Gold | Board Edge Straddle Mount | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | Card Extender | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 78 | Dual | Gold | Right Angle Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 78 | Dual | Gold | Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 78 | Dual | Gold | Board Edge Straddle Mount | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | Card Extender |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | M3 Threaded Insert Top Mount Opening | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 78 | Dual | Gold | Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 78 | Dual | Gold | Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 78 | Dual | Gold | Through Hole | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Non Specified - Dual Edge | Green | M3 Threaded Insert Top Mount Opening | 39 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 78 | Dual | Gold | Board Edge Straddle Mount | 3.96 mm | 0.156 in | Female | 2 | 0.25 Ám | 10 Áin | Cantilever | Card Extender |
