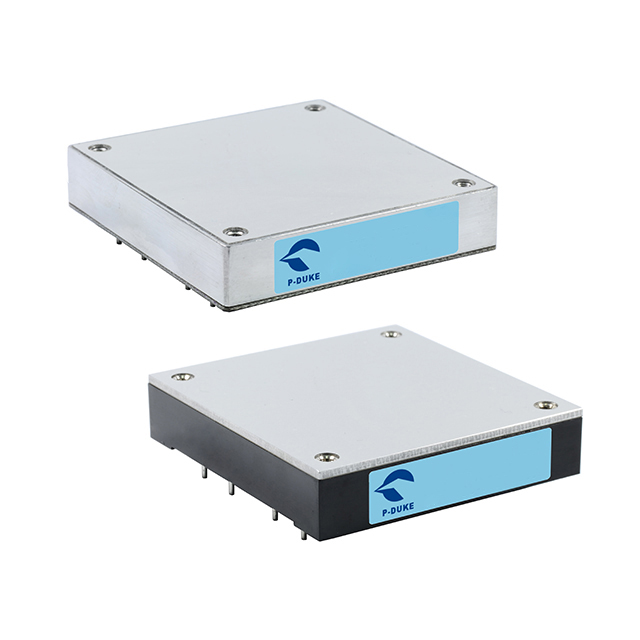

HAE75 Series

Catalog

DC DC CONVERTER 24V 77W

Part	Supplier Device Package	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Isolation	Voltage - Output 1	Features	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Input (Min) [Min]	Mounting Type	Applications	Control Features	Number of Outputs	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Standard Number
P-DUKE Technology HAE75-110S24W	Half Brick	3.2 A	Isolated Module	160 V	77 W	3000 V	24 V	Remote On/Off	105 C	-40 °C	CB CE cURus	43 V	Through Hole	ITE (Commercial)	Active Low Enable	1	90 %	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick
P-DUKE Technology HAE75-48S12W	Half Brick	6.3 A	Isolated Module	75 V	76 W	3000 V	12 V	Adjustable Output Baseplate Remote On/Off Remote Sense	105 C	-40 °C	CB CE cURus	18 V	Through Hole	ITE (Commercial)	Active Low Enable	1	90 %	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	60950-1
P-DUKE Technology HAE75-24S24W	Half Brick	3.2 A	Isolated Module	36 V	77 W	3000 V	24 V	Adjustable Output Baseplate Remote On/Off Remote Sense	105 C	-40 °C	CB CE cURus	9 V	Through Hole	ITE (Commercial)	Active Low Enable	1	87 %	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	60950-1
P-DUKE Technology HAE75-110S12W	Half Brick	6.3 A	Isolated Module	160 V	76 W	3000 V	12 V	Remote On/Off	105 C	-40 °C	CB CE cURus	43 V	Through Hole	ITE (Commercial)	Active Low Enable	1	91 %	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick
P-DUKE Technology HAE75-24S12W	Half Brick	6.3 A	Isolated Module	36 V	76 W	3000 V	12 V	Remote On/Off	105 C	-40 °C	CB CE cURus	9 V	Through Hole	ITE (Commercial)	Active Low Enable	1	88 %	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick
P-DUKE Technology HAE75-48S24W	Half Brick	3.2 A	Isolated Module	75 V	77 W	3000 V	24 V	Adjustable Output Baseplate Remote On/Off Remote Sense	105 C	-40 °C	CB CE cURus	18 V	Through Hole	ITE (Commercial)	Active Low Enable	1	88 %	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	60950-1
