NLAS5223C Series

Ultra-Low 0.35 Ω Dual SPDT Analog Switch

Catalog

Ultra-Low 0.35 Ω Dual SPDT Analog Switch

Part	On-State Resistance (Max) [Max]	Channel-to-Channel Matching (ΔRon) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Multiplexer/Demultiplexer Circuit	Current - Leakage (IS(off)) (Max)	Supplier Device Package	Package / Case	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Crosstalk	-3db Bandwidth	Mounting Type	Number of Circuits	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Current - Leakage (IS(off)) (Max) [Max]

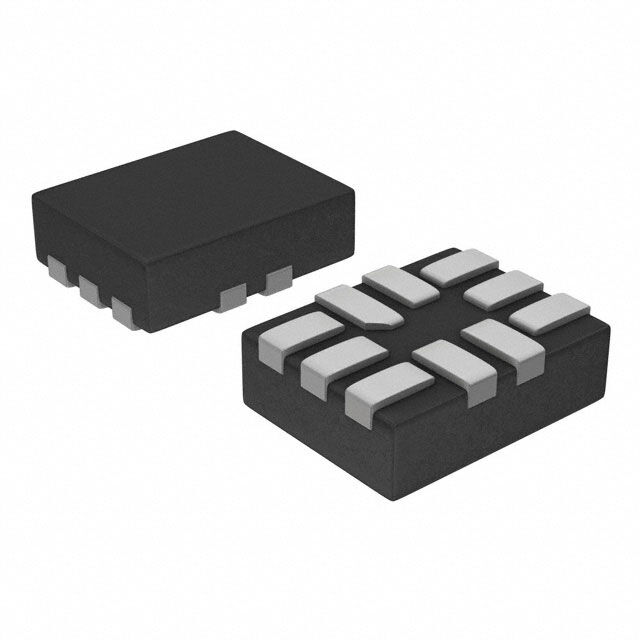

ON Semiconductor NLAS5223CMUTAG	350 mOhm	50 mOhm	60 pF	60 pF	38 pC	30 ns	50 ns	2:1	5 nA	10-UQFN (1.4x1.8)	10-UFQFN	SPDT	85 °C	-40 °C	-70 dB	24 MHz	Surface Mount	2	4.5 V	1.65 V
ON Semiconductor NLAS5223BMNR2G	350 mOhm	50 mOhm	60 pF	60 pF	38 pC	50 ns	50 ns	2:1		1.4x1.8 10-WQFN	10-WFQFN	SPDT	85 °C	-40 °C	-70 dB	19 MHz	Surface Mount	2	4.5 V	1.65 V	500 nA

Catalog

Ultra-Low 0.35 Ω Dual SPDT Analog Switch

Key Features

• Ultra Low RON, 0.5 Ohm at VCC = 3.0 V

• NLAS5223B Interfaces with 2.8 V Chipset, NLAS5223BL Interfaces with 1.8 V Chipset

• Single Supply Operation from 1.65 to 4.5 V

• Full 0 to VCC Signal Handling Capability

• High OffChannel Isolation, Low Standby Current, 50 nA, Low Distortion, RON Flatness of 0.15 Ohm

Description

The NLAS5223B is an advanced CMOS analog switch fabricated in Sub micron silicon gate CMOS technology. The device is a dual Independent Single Pole Double Throw (SPDT) switch featuring Ultra Low RON of 0.5 Ohm, at VCC = 3.0 V. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver.
