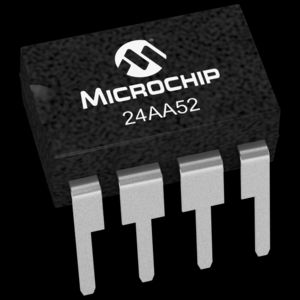

24AA52 Series

2Kb I2C Serial EEPROM with Half-Array Software Write Protection

Catalog

2Kb I2C Serial EEPROM with Half-Array Software Write Protection

Part	Memory Format	Supplier Device Package	Memory Organization [custom]	Memory Organization [custom]	Package / Case	Package / Case [custom]	Package / Case [custom]	Access Time	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page	Mounting Type	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Memory Size	Memory Type	Package / Case	Package / Case	Package / Case [y]	Package / Case [x]
Microchip Technology 24AA52T-I/ST	EEPROM	8-TSSOP	8	256	8-TSSOP	0.173 "	4.4 mm	900 ns	400 kHz	85 °C	-40 °C	5 ms	Surface Mount	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile
Microchip Technology 24AA52-I/P	EEPROM	8-PDIP	8	256	8-DIP			900 ns	400 kHz	85 °C	-40 °C	5 ms	Through Hole	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile	0.3 in	7.62 mm
Microchip Technology 24AA52T-I/MC	EEPROM	8-DFN (2x3)	8	256	8-VFDFN Exposed Pad			900 ns	400 kHz	85 °C	-40 °C	5 ms	Surface Mount	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile
Microchip Technology 24AA52T-I/SN	EEPROM	8-SOIC	8	256	8-SOIC			900 ns	400 kHz	85 °C	-40 °C	5 ms	Surface Mount	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile			3.9 mm	0.154 in
Microchip Technology 24AA52T-I/MS	EEPROM	8-MSOP	8	256	8-MSOP 8-TSSOP	0.118 in		900 ns	400 kHz	85 °C	-40 °C	5 ms	Surface Mount	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile	3 mm
Microchip Technology 24AA52-I/MS	EEPROM	8-MSOP	8	256	8-MSOP 8-TSSOP	0.118 in		900 ns	400 kHz	85 °C	-40 °C	5 ms	Surface Mount	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile	3 mm
Microchip Technology 24AA52T-I/MNY	EEPROM	8-TDFN (2x3)	8	256	8-WFDFN Exposed Pad			900 ns	400 kHz	85 °C	-40 °C	5 ms	Surface Mount	I2C	1.8 V	5.5 V	EEPROM	256 B	Non-Volatile

Catalog

2Kb I2C Serial EEPROM with Half-Array Software Write Protection

Key Features

• * Single supply with operation down to 1.8V

• * Low-power CMOS technology:

-- 1 mA active current, typical

-- 1 µA standby current, typical (I-temp)

• * Organized as 1 block of 256 bytes (256 x 8)

• * Software write protection for lower 128 bytes

• * Hardware write protection for entire array

• * 2-wire serial interface bus, I2C™ compatible

• * Schmitt Trigger inputs for noise suppression

• * Output slope control to eliminate ground bounce

• * 100 kHz (24AA52) and 400 kHz (24LCS52) compatibility

Description

The Microchip Technology Inc. 24AA52 is a 2 Kbit Electrically Erasable PROM capable of operation across a broad voltage range (1.8V to 5.5V). This device has a software write-protect feature for the lower half of the array, as well as an external pin that can be used to write-protect the entire array. The software write-protect feature is enabled by sending the device a special command. Once this feature has been enabled, it cannot be reversed. In addition to the software protect feature, there is a WP pin that can be used to write-protect the entire array, regardless of whether the software write-protect register has been written or not. This allows the system designer to protect none, half, or all of the array, depending on the application. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24AA52 also has a page write capability for up to 16 bytes of data. The 24AA52 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, MSOP and DFN packages.
