QR/P1 Series

Catalog

CONN RCPT HSG RACK & PNL 8P BLK

Part	Note	Connector Style	Number of Positions	Connector Usage	Mounting Type	Number of Rows [custom]	Connector Type	Features	Color	Pitch	Pitch	Wire Entry Location	Ratcheting	For Use With/Related Products	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish	Pin or Socket	Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Current Rating (Amps)
Hirose Electric Co Ltd QR/P1-8S-C(21)	Contacts Not Included	Rack and Panel	8	Receptacle	Panel Mount	2	Housing for Female Sockets	Mating Guide	Black
Hirose Electric Co Ltd QR/P1-32P-C(21)		Rack and Panel		Plug	Panel Mount	2	Housing for Male Pins	Guide Pin	Black

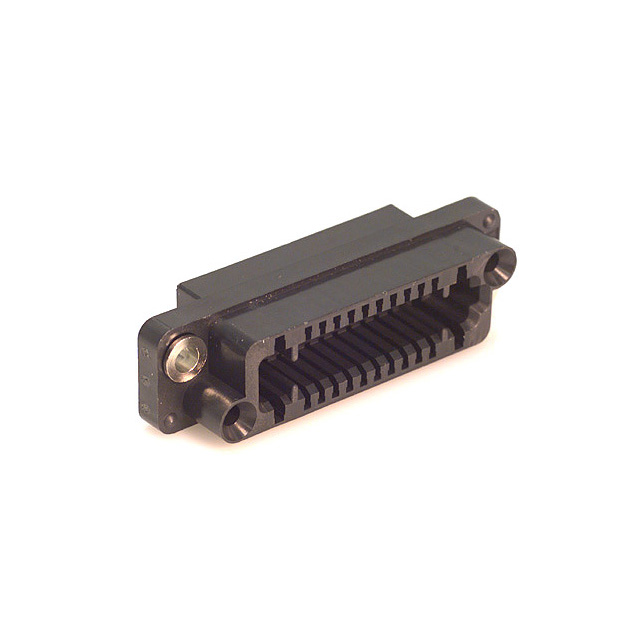

Hirose Electric Co Ltd QR/P1-24S-C(51)	Contacts Not Included	Rack and Panel	24	Receptacle	Panel Mount	2	Housing for Female Sockets	Mating Guide	Black	2.8 mm	0.11 in

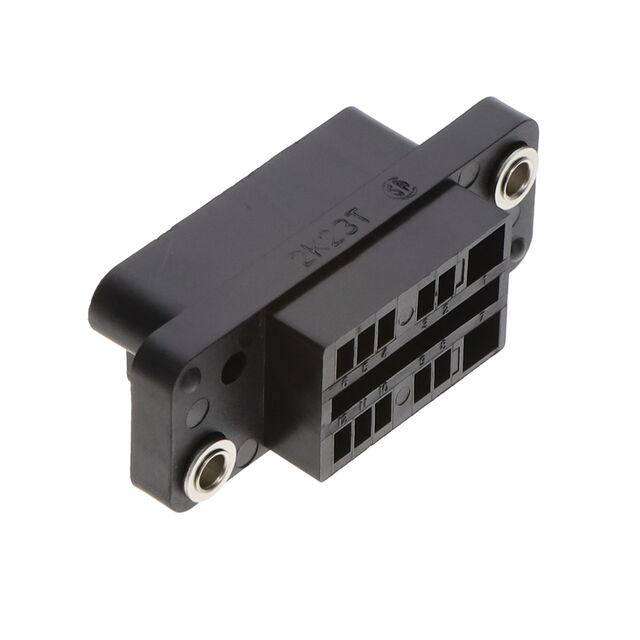

Hirose Electric Co Ltd QR/P1-12S-C(21)	Contacts Not Included	Rack and Panel	12	Receptacle	Panel Mount	2	Housing for Female Sockets	Mating Guide	Black
Hirose Electric Co Ltd TC-QR/P1-SC1B												Side Entry	Ratchet	Backplane Contacts	Hand Crimper	14 AWG	16 AWG
Hirose Electric Co Ltd QR/P1-SC2A-211(61)																		Gold	Socket	Signal	24 AWG	28 AWG	Crimp
Hirose Electric Co Ltd QR/P1-PC2A-111(12)																		Gold	Pin	Signal	24 AWG	28 AWG	Crimp
Hirose Electric Co Ltd QR/P1-PC2B-121(12)																		Gold	Pin	Signal	19.5 AWG	24 AWG	Crimp
Hirose Electric Co Ltd QR/P1-PCA1A-111																		Gold	Pin	Power	17.5 AWG	24 AWG	Crimp
Hirose Electric Co Ltd QR/P1-PC2A-211(15)																		Gold	Pin	Signal	24 AWG	28 AWG	Crimp	3 A
