STA8089FGA Series

Fully Integrated GPS/Galileo/Glonass/Beidou2/QZSS Receiver with embedded RF and in-package Flash

Catalog

Fully Integrated GPS/Galileo/Glonass/Beidou2/QZSS Receiver with embedded RF and in-package Flash

Part	Sensitivity	Mounting Type	Frequency	Supplier Device Package	Memory Size	Qualification	Data Rate (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Interface	Antenna Connector	Modulation or Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Package / Case	Applications	Frequency [Min]	Frequency [Max]	Features

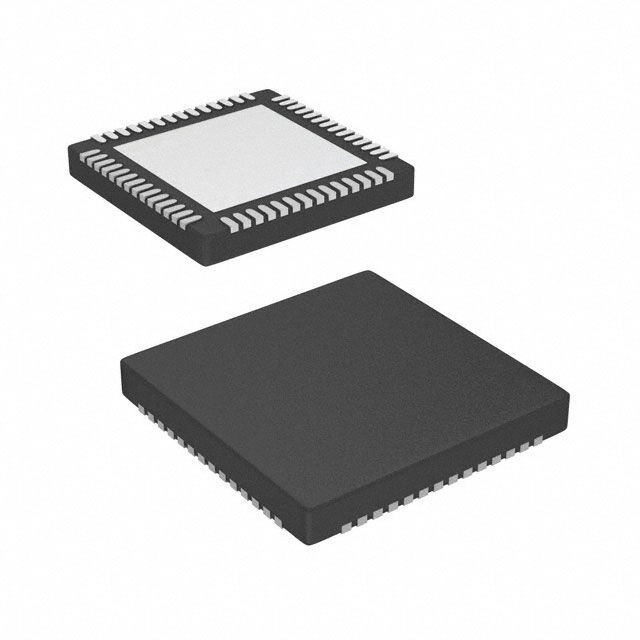

STMicroelectronics STA8089GAD	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB	AEC-Q100	12 Mbps	1.32 V	1.08 V	I2C SPI UART USB	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C	Automotive	56-VFQFN Exposed Pad	GPS Receiver
STMicroelectronics STA8089FGATR	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB	AEC-Q100	12 Mbps	1.32 V	1.08 V	I2C SPI UART USB	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C	Automotive	56-VFQFN Exposed Pad	GPS Receiver
STMicroelectronics STA8089GATR	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB	AEC-Q100	12 Mbps	1.32 V	1.08 V	I2C SPI UART USB	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C	Automotive	56-VFQFN Exposed Pad	GPS Receiver
STMicroelectronics STA8089FG-BG	-162 dBm	Surface Mount		56-VFQFPN (7x7)	256 kB 512 kB		12 Mbps	1.32 V	1.08 V	I2C SPI UART USB	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C		56-VFQFN Exposed Pad	General Purpose	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz
STMicroelectronics STA8089FG	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB		12 Mbps	1.32 V	1.08 V	I2C SPI UART	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C		56-VFQFN Exposed Pad	General Purpose
STMicroelectronics STA8089FGA-BG	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB	AEC-Q100	12 Mbps	1.32 V	1.08 V	I2C SPI UART USB	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C	Automotive	56-VFQFN Exposed Pad	GPS Receiver
STMicroelectronics STA8089GTR	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB		12 Mbps	1.32 V	1.08 V	I2C SPI UART	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C		56-VFQFN Exposed Pad	General Purpose
STMicroelectronics STA8089G	-162 dBm	Surface Mount	1.561 GHz 1.575 GHz 1.601 GHz	56-VFQFPN (7x7)	256 kB 512 kB		12 Mbps	1.32 V	1.08 V	I2C SPI UART	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C		56-VFQFN Exposed Pad	General Purpose
STMicroelectronics STA8089FGTR-BG	-162 dBm	Surface Mount		56-VFQFPN (7x7)	256 kB 512 kB		12 Mbps	1.32 V	1.08 V	I2C SPI UART USB	PCB Surface Mount	BeiDou Galileo GLONASS GNSS GPS	85 °C	-40 °C		56-VFQFN Exposed Pad	General Purpose	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz
STMicroelectronics STA8089GR	-163 dBm	Surface Mount		56-VFQFPN (7x7)	256 kB			4.3 V	1.6 V	GPIO I2C SPI UART USB	Not Included	BeiDou GLONASS GNSS GPS	85 °C	-40 °C		56-VFQFN Exposed Pad	GPS			Analog Digital Data Multiple Channels

Description

STA8089GA belongs to Teseo III family products. STA8089GA is a single die standalone positioning receiver IC working on multiple constellations (GPS/Galileo/GLONASS/BeiDou/QZSS). STA8089GA is compliant with ST Automotive Grade qualification which includes in addition to AEC-Q100 requirements a set of production flow methodologies targeting zero defect per million. STA8089GA, fulfilling high quality and service level requirements of the Automotive market, is the ideal solution for in-dash navigation and OEM telematics applications. The device is offered with a complete GNSS firmware which performs all GNSS operations including tracking, acquisition, navigation and data output. STA8089GAD can run also TESEO-DRAW the STMicroelectronics dead reckoning firmware.
