BXRC-27 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

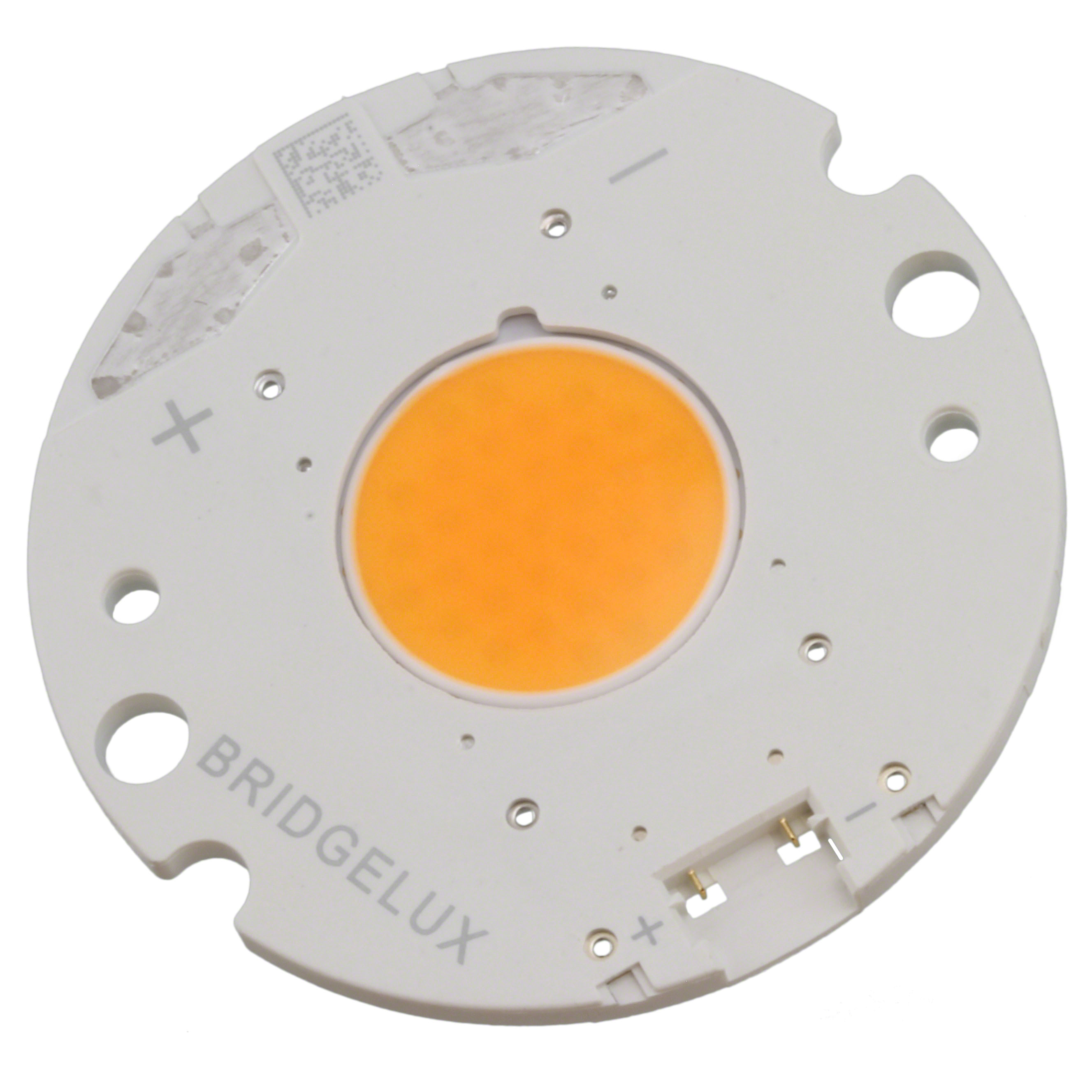

LED COB DECOR WM WH ROUND 2700K

...

Part	Light Emitting Surface (LES) [diameter]	Features	CRI (Color Rendering Index)	Viewing Angle	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Type	Lens Type	Lumens/Watt @ Current - Test	Color	Height [z]	Size / Dimension [diameter]	Current - Max [Max]	Temperature - Test	Luminous Flux @ Current/Temperature
BRIDGELUX BXRC-27H2000-C-22	13.2 mm	With Connector	97	120 °	2-Step MacAdam Ellipse	2700 K	31.5 V	500 mA	Round	Chip On Board (COB)	Flat	63 lm/W	Warm White	1.9 mm	36.2 mm	1.5 A	85 °C	992 lm
BRIDGELUX BXRC-27H1000-C-73-SE	9.9 mm		97	120 °	3-Step MacAdam Ellipse	2700 K	33.8 V	360 mA	Round	Chip On Board (COB)	Flat	96 lm/W	Warm White	3.6 mm	30.8 mm	720 mA	85 °C	1173 lm
BRIDGELUX BXRC-27H1000-B-23	9.9 mm	With Connector	97	120 °	3-Step MacAdam Ellipse	2700 K	25.8 V	350 mA	Round	Chip On Board (COB)	Flat	70 lm/W	Warm White	1.9 mm	20 mm	1.05 A	85 °C	632 lm
BRIDGELUX BXRC-27H1000-C-72-SE	9.9 mm		97	120 °	2-Step MacAdam Ellipse	2700 K	33.8 V	360 mA	Round	Chip On Board (COB)	Flat	96 lm/W	Warm White	3.6 mm	30.8 mm	720 mA	85 °C	1173 lm

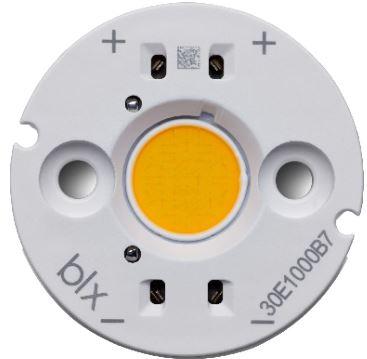

BRIDGELUX BXRC-27G1000-D-72-SE	9.9 mm		90	120 °	2-Step MacAdam Ellipse	2700 K	25.3 V	350 mA	Round	Chip On Board (COB)	Flat	111 lm/W	Warm White	3.6 mm	30.8 mm	700 mA	85 °C	983 lm
BRIDGELUX BXRC-27G1000-C-72-SE	9.9 mm		90	120 °	2-Step MacAdam Ellipse	2700 K	33.8 V	360 mA	Round	Chip On Board (COB)	Flat	111 lm/W	Warm White	3.6 mm	30.8 mm	720 mA	85 °C	1353 lm
BRIDGELUX BXRC-27G1000-C-73	9.9 mm	With Connector	90	120 °	3-Step MacAdam Ellipse	2700 K	34.8 V	360 mA	Starboard	Chip On Board (COB)	Flat		Warm White	1.9 mm	20 mm	720 mA	25 °C	1548 lm
BRIDGELUX BXRC-27H2000-D-72	13.2 mm		97	120 °	2-Step MacAdam Ellipse	2700 K	30.9 V	500 mA	Round	Chip On Board (COB)	Flat	108 lm/W	Warm White	1.9 mm	36.2 mm	1 A	85 °C	1674 lm
BRIDGELUX BXRC-27G2000-B-72-SE	13.4 mm		90	120 °	2-Step MacAdam Ellipse	2700 K	33.9 V	450 mA	Round	Chip On Board (COB)	Flat	116 lm/W	Warm White	3.6 mm	36.2 mm	900 mA	85 °C	1776 lm
BRIDGELUX BXRC-27H1000-D-72	9.9 mm		97	120 °	2-Step MacAdam Ellipse	2700 K	25.3 V	350 mA	Starboard	Chip On Board (COB)	Flat	105 lm/W	Warm White	1.9 mm	20 mm	700 mA	85 °C	925 lm
