TES 2 Series

Catalog

DC DC CONVERTER +/-12V 2W

Part	Package / Case	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Power (Watts)	Efficiency	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Features	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Traco Power TES 2-2422M	16-SMD Module 6 Leads	ITE (Commercial) Medical	21.6 V	2	Isolated Module	26.4 V	4000 V	0.94 "	0.36 "	13.7 mm	0.54 in	9.3 mm	24 mm	12 V	2 W	74 %	-12 V	-25 °C	80 ¯C	83 mA	83 mA	SCP	Surface Mount
Traco Power TES 2-1223H	10-SMD Module 6 Leads	ITE (Commercial)	10.8 V	2	Isolated Module	13.2 V	1.5 kV							15 V	2 W	80 %	-15 V	-40 °C	85 °C	66 mA		SCP	Surface Mount

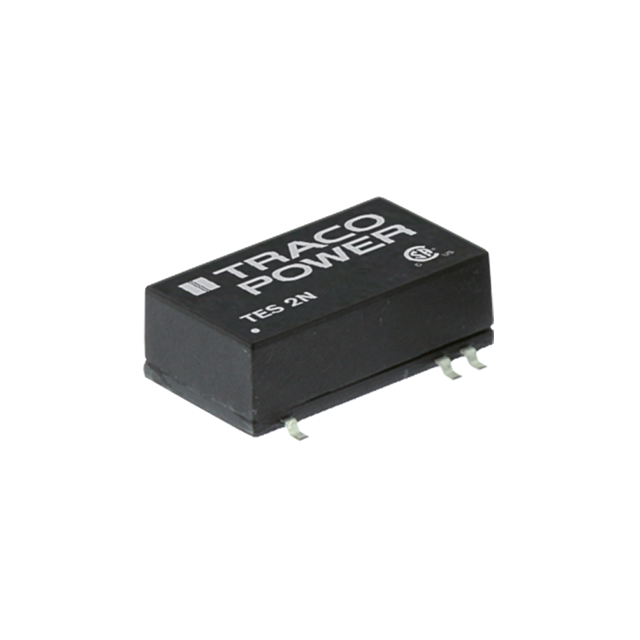

Traco Power TES 2N-2423	16-SMD Module 6 Leads	ITE (Commercial)	18 V	2	Isolated Module	36 V	1.5 kV	0.94 "	0.36 "	13.7 mm	0.54 in	9.3 mm	24 mm	15 V	2 W	80 %	-15 V	-40 °C	85 °C			SCP	Surface Mount	65 mA
Traco Power TES 2N-2411	16-SMD Module 6 Leads	ITE (Commercial)	18 V	1	Isolated Module	36 V	1.5 kV	0.94 "	0.36 "	13.7 mm	0.54 in	9.3 mm	24 mm	5 V	2 W	77 %		-40 °C	85 °C			SCP	Surface Mount	400 mA
Traco Power TES 2-2411H	8-SMD Module 5 Leads	ITE (Commercial)	21.6 V	1	Isolated Module	26.4 V	1.5 kV	13.7 mm	8.9 mm		9.3 mm			5 V	2 W	75 %		-40 °C	85 °C			SCP	Surface Mount	400 mA	0.37 in	0.35 in	0.54 in
Traco Power TES 2N-1210	16-SMD Module 6 Leads	ITE (Commercial)	9 V	1	Isolated Module	18 V	1.5 kV	0.94 "	0.36 "	13.7 mm	0.54 in	9.3 mm	24 mm	3.3 V	1.7 W	73 %		-40 °C	85 °C			SCP	Surface Mount	500 mA
Traco Power TES 2-1222H	10-SMD Module 6 Leads	ITE (Commercial)	10.8 V	2	Isolated Module	13.2 V	1.5 kV							12 V	2 W	80 %	-12 V	-40 °C	85 °C	83 mA	83 mA	SCP	Surface Mount

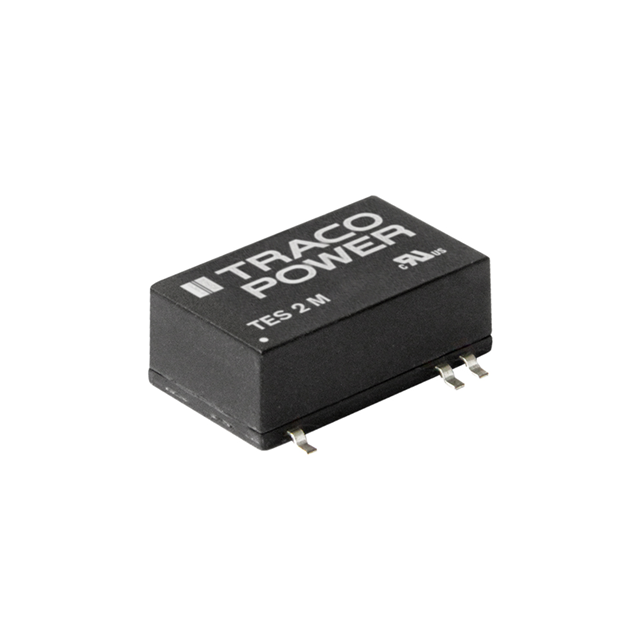

Traco Power TES 2-0511M	16-SMD Module 6 Leads	ITE (Commercial) Medical	5 V	1	Isolated Module	5.5 V	4000 V	0.94 "	0.36 "	13.7 mm	0.54 in	9.3 mm	24 mm	5 V	2 W	66 %		-25 °C	80 ¯C			SCP	Surface Mount	400 mA
Traco Power TES 2-2423M	16-SMD Module 6 Leads	ITE (Commercial) Medical	21.6 V	2	Isolated Module	26.4 V	4000 V	0.94 "	0.36 "	13.7 mm	0.54 in	9.3 mm	24 mm	15 V	2 W	75 %	-15 V	-25 °C	80 ¯C	66 mA		SCP	Surface Mount

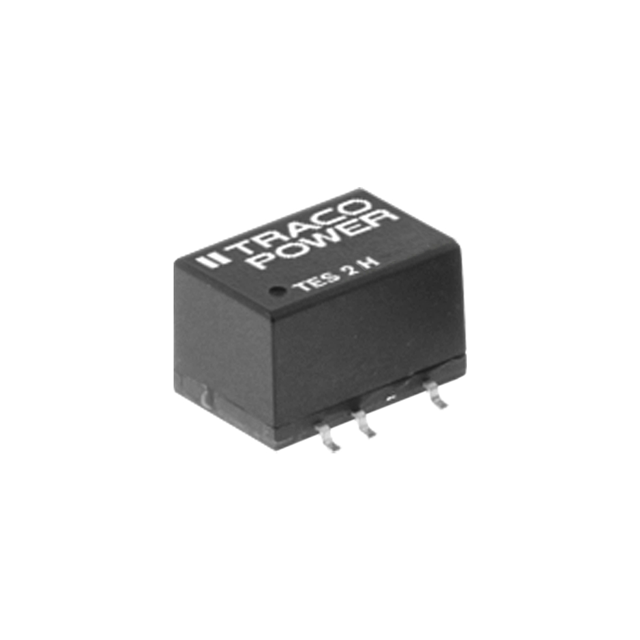

Traco Power TES 2-2423H	10-SMD Module 6 Leads	ITE (Commercial)	21.6 V	2	Isolated Module	26.4 V	1.5 kV							15 V	2 W	79 %	-15 V	-40 °C	85 °C	66 mA		SCP	Surface Mount
