DF13E Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Contact Type | Insulation Material | Contact Material | Features | Contact Shape | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shrouding | Style | Insulation Height | Insulation Height | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Termination | Voltage Rating | Material Flammability Rating | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Connector Type | Contact Finish - Mating | Current Rating (Amps) | Number of Rows [custom] | Mounting Type | Mated Stacking Heights | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | |||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||||||||||||||

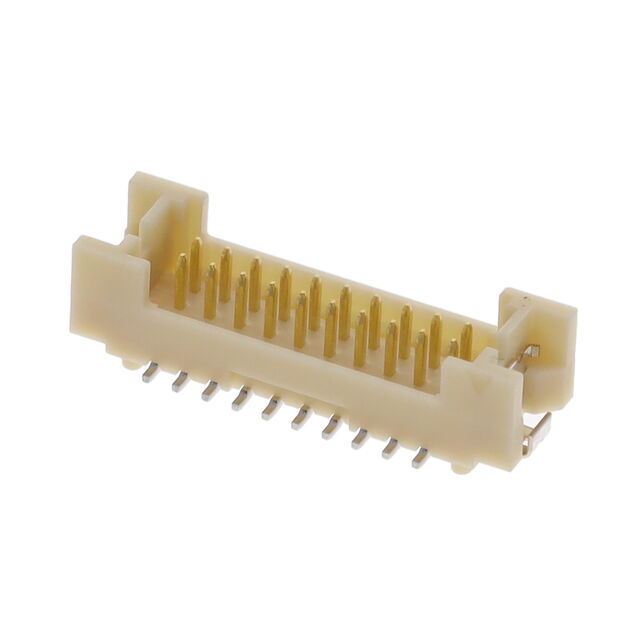

 Hirose Electric Co Ltd | Male Pin | Nylon Polyamide (PA) | Brass | Solder Retention | Square | Beige | 85 °C | -35 °C | Push-Pull | Shrouded - 3 Wall | Board to Cable/Wire | 4.8 mm | 0.189 in | Gold | 0.049 in | 1.25 mm | Solder | 150 VDC | UL94 V-0 | 20 | 1.25 mm | 0.049 in | All | Header | Gold | 1 A | 2 | Right Angle Through Hole | |||||

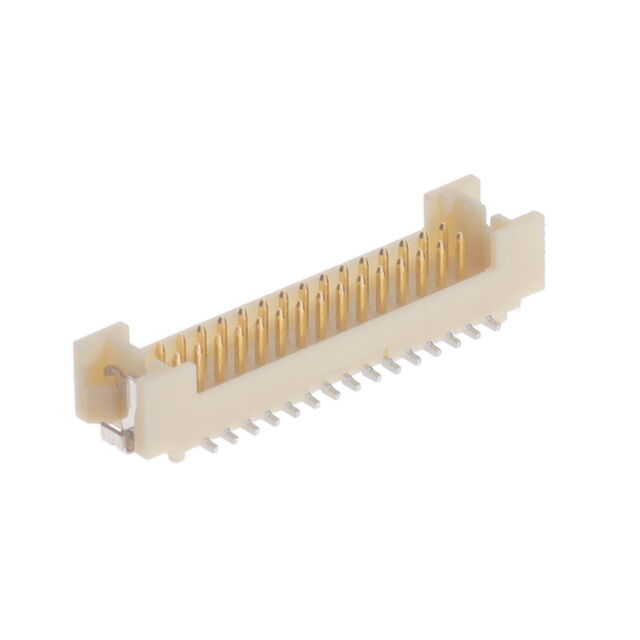

 Hirose Electric Co Ltd | Male Pin | Nylon Polyamide (PA) | Brass | Solder Retention | Square | Beige | 85 °C | -35 °C | Push-Pull | Shrouded - 4 Wall | Board to Cable/Wire | 4.8 mm | 0.189 in | 0.049 in | 1.25 mm | Solder | 29.9 VAC/DC | UL94 V-0 | 30 | 1.25 mm | 0.049 in | All | Header | Gold | 1 A | 2 | Surface Mount | 5.8 mm | |||||

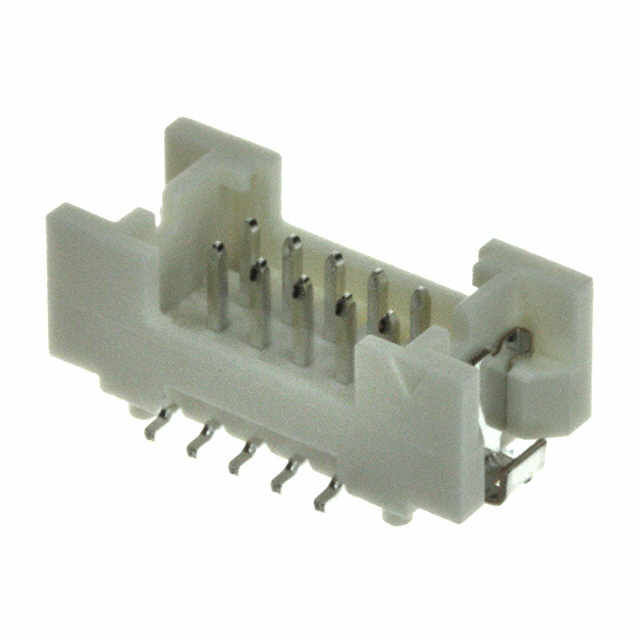

 Hirose Electric Co Ltd | Male Pin | Nylon Polyamide (PA) | Brass | Board Guide Solder Retention | Square | Beige | 85 °C | -35 °C | Push-Pull | Shrouded - 4 Wall | Board to Cable/Wire | 4.8 mm | 0.189 in | 0.049 in | 1.25 mm | Solder | 150 VDC | UL94 V-0 | 10 | 1.25 mm | 0.049 in | All | Header | Tin-Copper | 2 | Surface Mount | 5.8 mm | 39.4 µin | 1 µm | 2.4 mm | 0.094 in | ||
Hirose Electric Co Ltd | Male Pin | Nylon Polyamide (PA) | Brass | Solder Retention | Square | Beige | 85 °C | -35 °C | Push-Pull | Shrouded - 2 Wall | Board to Cable/Wire | 4.8 mm | 0.189 in | 0.049 in | 1.25 mm | Solder | 29.9 VAC/DC | UL94 V-0 | 20 | 1.25 mm | 0.049 in | All | Header | 1 A | 2 | Surface Mount | |||||||
Hirose Electric Co Ltd | |||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Male Pin | Nylon Polyamide (PA) | Brass | Solder Retention | Square | Beige | 85 °C | -35 °C | Push-Pull | Shrouded - 2 Wall | Board to Cable/Wire | 4.8 mm | 0.189 in | 0.049 in | 1.25 mm | Solder | 29.9 VAC/DC | UL94 V-0 | 40 | 1.25 mm | 0.049 in | All | Header | 1 A | 2 | Surface Mount |
