C0562 Series
Manufacturer: Prysmian Group
Beta
⌘K

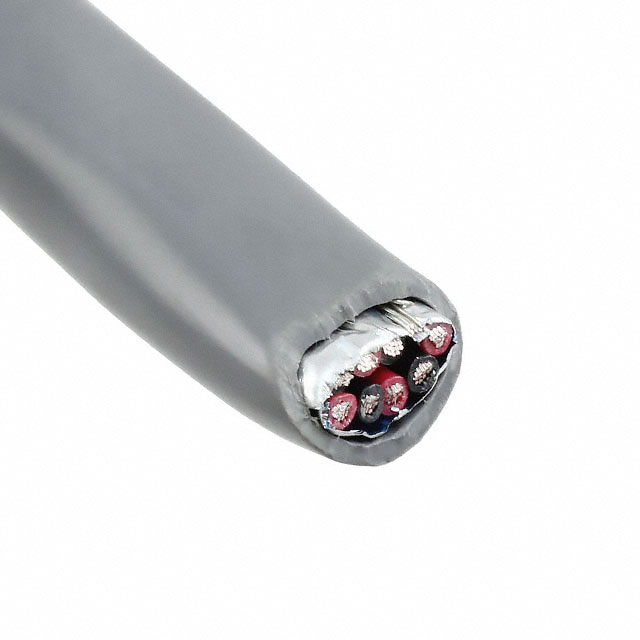

MULTI-PAIR 8COND 18AWG GRAY 500'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Shield Type | Voltage | Length | Length | Conductor Material | Ratings | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Features | Jacket Color | Cable Type | Number of Conductors | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 11.18 mm | 0.44 " | Poly-Vinyl Chloride (PVC) | Foil | 300 VDC | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Copper Annealed Tinned | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Communication Control | 100 ft | 30.5 m | -20 ░C | 105 ░C | 0.053 " | 1.067 mm 1.346 mm | 0.042 in | 18 AWG | Drain Wire | Gray | Multi-Pair | 8 | ||
Prysmian Group | 11.18 mm | 0.44 " | Poly-Vinyl Chloride (PVC) | Foil | 300 VDC | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Annealed Tinned | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | Communication Control | -20 ░C | 105 ░C | 0.053 " | 1.067 mm 1.346 mm | 0.042 in | 18 AWG | Drain Wire | Gray | Multi-Pair | 8 | 100 % | Copper Flexfoil® Tinned |
