10 GHz to 26 GHz, GaAs MMIC Fundamental Mixer
Key Features
• DownconverterConversion loss7.5 dB (typical) for 10 GHz to 18 GHz8.5 dB (typical) for 18 GHz to 26 GHzLO to RF isolation: 40 dB (typical)LO to IF isolation34 dB (typical) for 10 GHz to 18 GHz37 dB (typical) for 18 GHz to 26 GHzRF to IF isolation20 dB (typical) for 10 GHz to 18 GHz31 dB (typical) for 18 GHz to 26 GHzInput third-order intercept (IP3):18 dBm (typical) for 10 GHz to 18 GHz22 dBm (typical) for 18 GHz to 26 GHzInput power for 1 dB compression (P1dB)9.5 dB (typical) for 10 GHz to 18 GHz12 dB (typical) for 18 GHz to 26 GHz
• Conversion loss7.5 dB (typical) for 10 GHz to 18 GHz8.5 dB (typical) for 18 GHz to 26 GHz
• 7.5 dB (typical) for 10 GHz to 18 GHz
• 8.5 dB (typical) for 18 GHz to 26 GHz
• LO to RF isolation: 40 dB (typical)
• LO to IF isolation34 dB (typical) for 10 GHz to 18 GHz37 dB (typical) for 18 GHz to 26 GHz
• 34 dB (typical) for 10 GHz to 18 GHz
• 37 dB (typical) for 18 GHz to 26 GHz
• RF to IF isolation20 dB (typical) for 10 GHz to 18 GHz31 dB (typical) for 18 GHz to 26 GHz
• 20 dB (typical) for 10 GHz to 18 GHz
• 31 dB (typical) for 18 GHz to 26 GHz
• Input third-order intercept (IP3):18 dBm (typical) for 10 GHz to 18 GHz22 dBm (typical) for 18 GHz to 26 GHz
• 18 dBm (typical) for 10 GHz to 18 GHz
• 22 dBm (typical) for 18 GHz to 26 GHz
• Input power for 1 dB compression (P1dB)9.5 dB (typical) for 10 GHz to 18 GHz12 dB (typical) for 18 GHz to 26 GHz
• 9.5 dB (typical) for 10 GHz to 18 GHz
• 12 dB (typical) for 18 GHz to 26 GHz
• IF bandwidth: dc to 8 GHz
• Passive: no dc bias required
• Small size: 0.94 mm × 0.59 mm × 0.102 mm
Description
AI

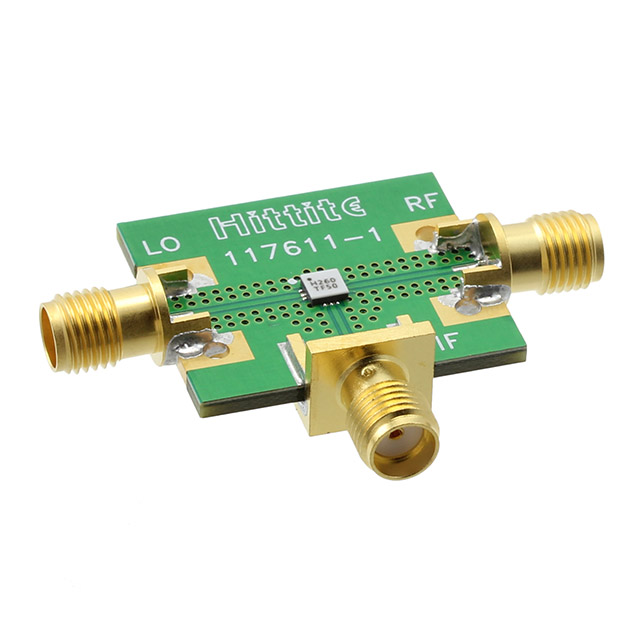

The HMC260A is a general-purpose, double balanced mixer chip that can be used as an upconverter or downconverter from 10 GHz to 26 GHz. This miniature monolithic mixer (MMIC) requires no external components or matching circuitry.The HMC260A provides excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixer operates well with LO drive levels of 13 dBm or above. The HMC260A is also available in SMT format as theHMC260ALC3B.ApplicationsPoint to point radiosPoint to multipoint radios and very small aperture terminals (VSATs)Test equipment and sensorsMilitary end use
