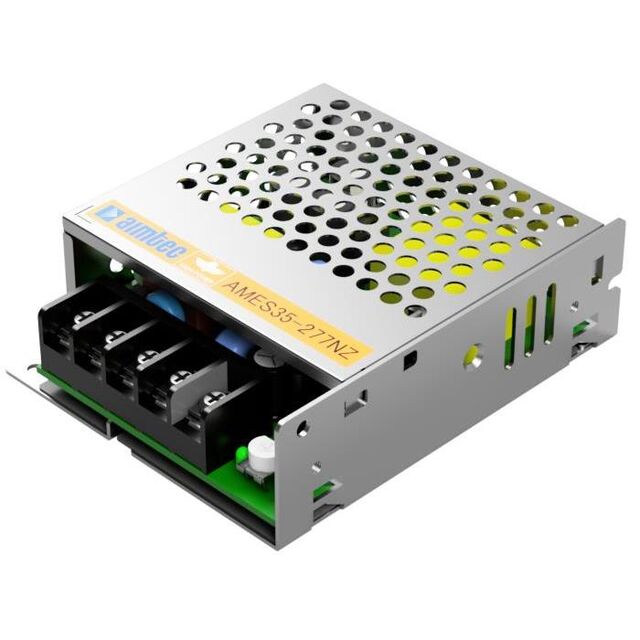

AMES35 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 24V 36W

Part	Features	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Mounting Type	Power (Watts)	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Current - Output 1	Efficiency	Voltage - Isolation
aimtec AMES35-24S277NZ-P	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	24 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	1.5 A	87 %	4000 V
aimtec AMES35-12S277NZ-P	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	12 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	3 A	85 %	4000 V
aimtec AMES35-15S277NZ-P	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	15 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	2.4 A	86 %	4000 V
aimtec AMES35-15S277NZ-Q	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	15 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Conformal Coated Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	2.4 A	86 %	4000 V
aimtec AMES35-5S277NZ-P	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	5 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Enclosed	Chassis Mount	35 W	1	-30 °C	70 °C	60335-1 62368-1	7 A	81 %	4000 V
aimtec AMES35-24S277NZ	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	24 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	1.5 A	87 %	4000 V
aimtec AMES35-12S277NZ-Q	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	12 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Conformal Coated Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	3 A	85 %	4000 V
aimtec AMES35-24S277NZ-Q	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	24 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Conformal Coated Enclosed	Chassis Mount	36 W	1	-30 °C	70 °C	60335-1 62368-1	1.5 A	87 %	4000 V
aimtec AMES35-5S277NZ-Q	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	5 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Conformal Coated Enclosed	Chassis Mount	35 W	1	-30 °C	70 °C	60335-1 62368-1	7 A	81 %	4000 V
aimtec AMES35-5S277NZ	Adjustable Output	CB CE EN IEC UL	305 VAC 430 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	5 V	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	Enclosed	Chassis Mount	35 W	1	-30 °C	70 °C	60335-1 62368-1	7 A	81 %	4000 V
