IT8D Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS

Part	Number of Rows [custom]	Contact Finish	Number of Positions [custom]	Mated Stacking Heights	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Number of Positions	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]

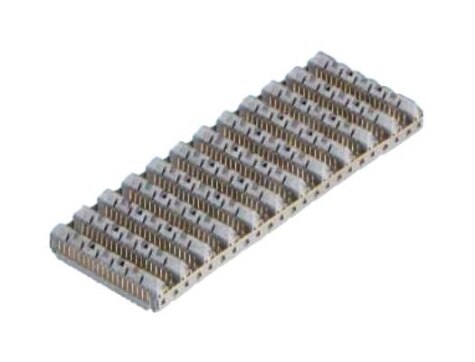

Hirose Electric Co Ltd IT8D-288P-BGA-1H	2	Gold	288	10 mm 13 mm	Mounting Side	30 Áin	0.76 Ám	Plug Non-Gendered	Surface Mount
Hirose Electric Co Ltd IT8D-120P-BGA-0H		Gold		1 mm	Mating Side	30 Áin	0.76 Ám	Plug Non-Gendered	Surface Mount	120	10
Hirose Electric Co Ltd IT8D-192P-BGA-1H	2	Gold		10 mm 13 mm	Mounting Side	30 Áin	0.76 Ám	Plug Non-Gendered	Surface Mount	192
Hirose Electric Co Ltd IT8D-288P-BGA-0H	2	Gold	288	10 mm 13 mm	Mounting Side	30 Áin	0.76 Ám	Plug Non-Gendered	Surface Mount

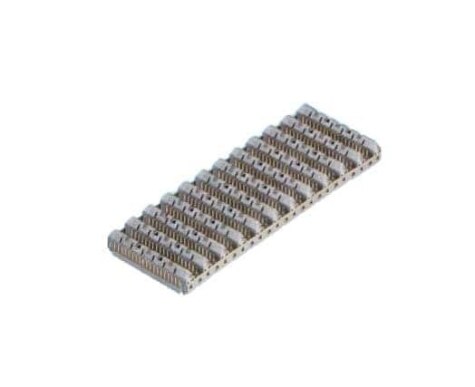

Hirose Electric Co Ltd IT8D-120P-BGA-1H		Gold				30 Áin	0.76 Ám	Plug Non-Gendered	Surface Mount	190		7.24 mm	0.285 in	10 mm	46 mm
Hirose Electric Co Ltd IT8D-192P-BGA-0H		Gold				50 µin	1.27 µm	Plug Non-Gendered	Surface Mount	192		7.24 mm	0.285 in
