AMEL5 Series

Manufacturer: aimtec

Catalog

AC/DC DIN RAIL SUPPLY 9V 5W

Part	Applications	Power (Watts)	Efficiency	Input Type	DC Voltage - Input (Max) [Max]	Approval Agency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Standard Number	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Weight	Weight	Load Regulation	Line Regulation	Type	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Mounting Type	Weight [custom]	Weight [custom]	Current - Output 1	Load Regulation

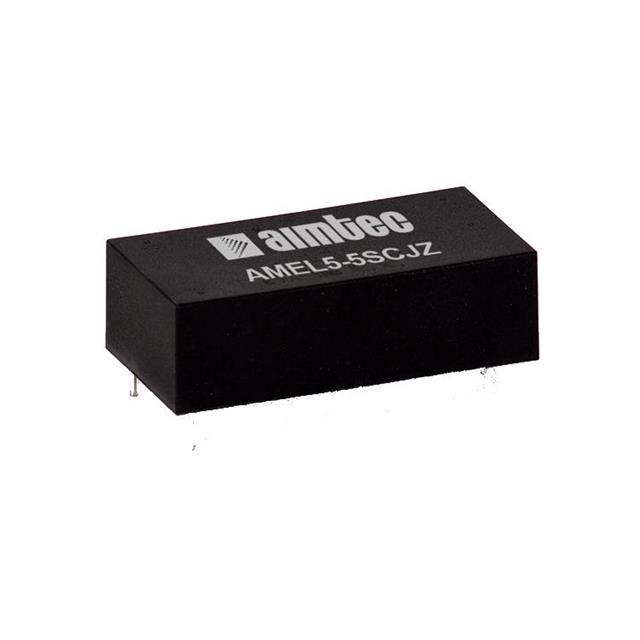

aimtec AMEL5-09SCJZ-STD	Medical	5 W	78 %	AC or DC	370 V	cULus cURus	264 VAC	85 VAC	550 mA	100 V	60601-1	1	70 °C	-25 °C	9 V	Universal Input	1.02 "	75.9 mm	25.9 mm	2.99 in	0.91 in	23.1 mm	4000 V
aimtec AMEL5-5SMAZ	ITE (Commercial) Medical	5 W	74 %			CB CE cULus cURus EN IEC UL			1 A		60601-1	1	80 ¯C	-40 °C	5 V	Universal Input	2.03 "	17.8 mm	51.5 mm	0.7 in	1.1 in	28 mm		0.066 lb	30 g	±1%	1 %	Enclosed	264 VAC	90 VAC	5-DIP Module	Through Hole
aimtec AMEL5-24SEMAZ	ITE (Commercial) Medical	5 W	76 %			CB CE cURus			210 mA			1	80 ¯C	-40 °C	24 V	Universal Input	2.03 "	17.8 mm	51.5 mm	0.7 in	1.1 in	28 mm				±1%	1 %	Enclosed	264 VAC	90 VAC	5-DIP Module	Through Hole
aimtec AMEL5-9SVZ	ITE (Commercial)	5 W	77 %						560 mA			1			9 V	Universal Input	1.46 in	18 mm	37 mm	0.71 in	0.96 in	24.5 mm				±1%	0.5 %	Enclosed	264 VAC 370 VDC	85 VAC 100 V	26-DIP Module 5 Leads	Through Hole	25 g	0.055 lb
aimtec AMEL5-24SVZ-W	ITE (Commercial)	5 W	81 %									1	70 °C	-40 C	24 V	Universal Input	1.46 in	18 mm	37 mm	0.71 in	0.97 "	24.9 mm	4000 V					Enclosed	264 VAC 370 VDC	85 VAC 100 V		Chassis Mount			210 mA
aimtec AMEL5-5SEMAZ	ITE (Commercial) Medical	5 W	74 %			CB CE cURus			1 A			1	80 ¯C	-40 °C	5 V	Universal Input	2.03 "	17.8 mm	51.5 mm	0.7 in	1.1 in	28 mm				±1%	1 %	Enclosed	264 VAC	90 VAC	5-DIP Module	Through Hole
aimtec AMEL5-5SJZ	ITE (Commercial)	5 W	78 %			CE cULus cURus			1 A			1	70 °C	-25 °C	5 V		2 in	15.2 mm	50.8 mm	0.6 "	1 "	25.4 mm					0.5 %	Enclosed			4-DIP Module	Through Hole				0.5 %
aimtec AMEL5-9S277NZ	ITE (Commercial)	5 W	74 %						550 mA			1			9 V		1 in	15.4 mm	25.4 mm	0.61 in	2 in	50.8 mm		0.068 lb	31 g	±1%	0.5 %	Enclosed	305 VAC	85 VAC	4-DIP Module	Through Hole
aimtec AMEL5-24SCJZ-ST	Medical		83 %			cULus cURus					60601-1	1	70 °C	-25 °C	24 V	Universal Input	2.99 in	24 mm	76 mm	0.94 "	1.24 in	31.5 mm	4000 V					Enclosed				Chassis Mount			230 mA
aimtec AMEL5-24SMAZ	ITE (Commercial) Medical	5 W	76 %			CB CE cULus cURus EN IEC UL			210 mA		60601-1	1	80 ¯C	-40 °C	24 V	Universal Input	2.03 "	17.8 mm	51.5 mm	0.7 in	1.1 in	28 mm		0.066 lb	30 g	±1%	1 %	Enclosed	264 VAC	90 VAC	5-DIP Module	Through Hole
