1010939 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

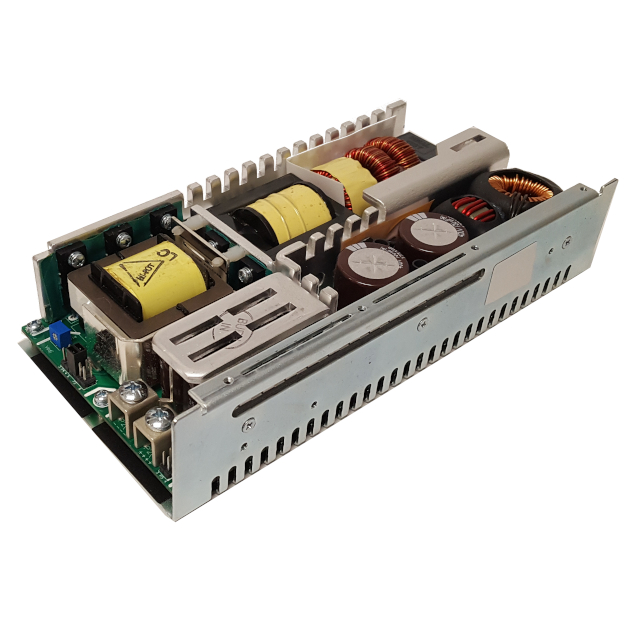

AC/DC CONVERTER 15V 400W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Output 1 | Approval Agency | Efficiency | Standard Number | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Voltage - Output 1 | Applications | Features | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 70 °C | 0 °C | Chassis | 26.7 A | CE cURus TUV UKCA | 85 % | 60601-1; 62368-1 | 400 W | 4 " | 8.28 " | 101.6 mm | 210.4 mm | 1.8 in | 45.7 mm | 100 VAC | 240 VAC | Chassis Mount | 15 V | ITE (Commercial) Medical | Adjustable Output Remote Sense Universal Input | 1 |
