1630 Series
Manufacturer: Hammond Manufacturing
Beta
⌘K

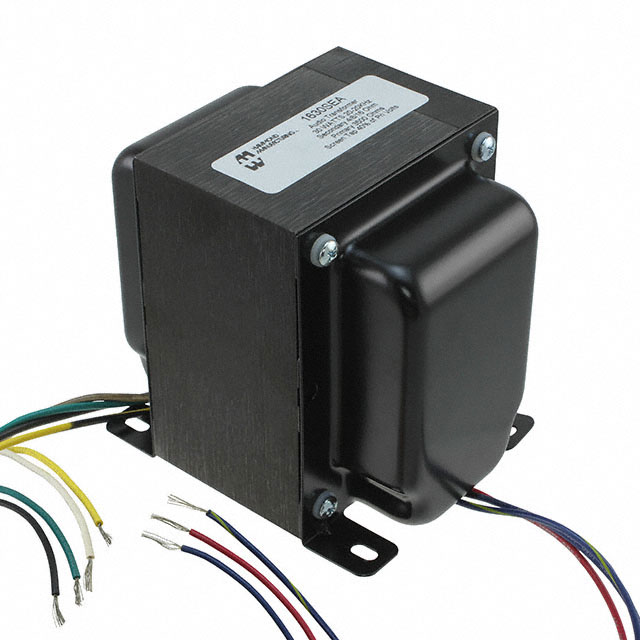

XFMR 3.5K / 4, 8, 16 CHAS MNT
| Part | Weight | Weight | Insertion Loss | Frequency Range [Max] | Frequency Range [Min] | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary [custom] | Power Level | DC Resistance (DCR) - Secondary | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Isolation | Frequency Response | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Transformer Type | Impedance - Primary (Ohms) | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 11 lbs | 5 kg | 1 dB | 20 kHz | 20 Hz | 4 Ohms 8 Ohms 16 Ohms | 110.1 Ohm | 30 W | 634 mOhm | 118.11 mm | 4.65 in | 2828 VDC | 1 dB | 126.49 mm | 4.98 in | 95.25 mm | 3.75 " | Single Ended Audiophile Ultra-Linear - Tube Output | 3.5 kOhms | Wire Leads | Chassis Mount |
