UG-657/U Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

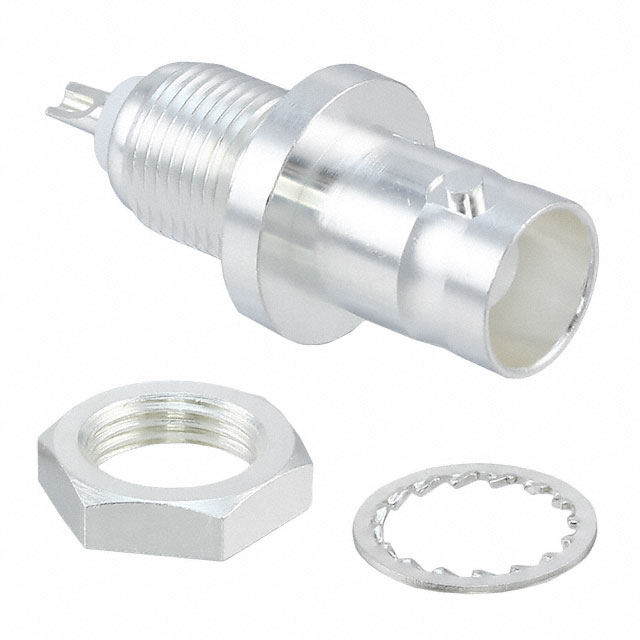

CONN RF COAX RECEPT
| Part | Body Material | Mating Cycles | Body Finish | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Connector Style | Connector Type | Frequency - Max [Max] | Mounting Feature | Impedance | Number of Ports | Fastening Type | Housing Color | Center Contact Material | Mounting Type | Shield Termination | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||
 Hirose Electric Co Ltd | Brass | 1000 | Silver | Polytetrafluoroethylene (PTFE) | Silver | -55 C | 85 °C | 1 Connector 1 Lockwasher 1 Nut | BNC | Female Socket Jack | 4 GHz | Bulkhead - Rear Side Nut | 50 Ohms | 1 | Bayonet Lock | Silver | Beryllium Copper | Panel Mount | Solder | Solder Cup |
