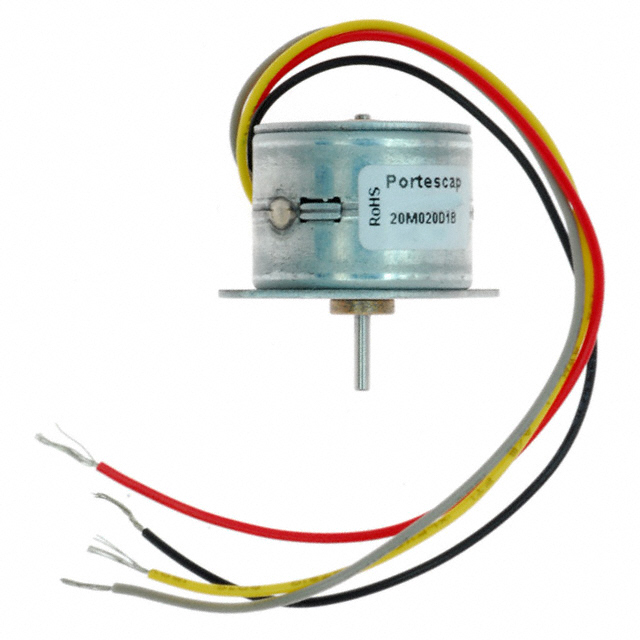

20M020 Series
Manufacturer: Portescap
Beta
⌘K
STEPPER MOTOR PM BIPOLAR 5V
| Part | Weight | Rotor Inertia | Coil Resistance | Diameter - Shaft | Coil Type | Mounting Hole Spacing | Steps per Revolution | Length - Shaft and Bearing | Torque - Holding (oz-in) | Torque - Holding (mNm) | Accuracy | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Shape | Size / Dimension Diameter | Termination Style | Current Rating | Type | Features | Voltage - Rated | Step Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.052 lb | 0.41 gcm² | 20 Ohms | 0.059 in | Bipolar | 0.984 in | 20 steps | 0.335 in | 1.55 oz-in | 10.95 mNm | 12 % | 70 °C | -20 °C | Round | 0.807 in | Wire Leads | 0.25 A | Permanent Magnet | Round Shaft | 5 VAC | 18 ° |
 Portescap | 0.052 lb | 0.41 gcm² | 115.2 Ohms | 0.059 in | Unipolar | 0.984 in | 20 steps | 0.335 in | 1.1 oz-in | 7.77 mNm | 12 % | 70 °C | -20 °C | Round | 0.807 in | Wire Leads | 100 mA | Permanent Magnet | Round Shaft | 5 VAC | 18 ° |
