LD29150 Series

1.5 A, very low drop voltage regulators

Catalog

1.5 A, very low drop voltage regulators

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Current - Quiescent (Iq)	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Mounting Type	Current - Output	Protection Features	Supplier Device Package	Package / Case	Voltage - Input (Max) [Max]	PSRR	Number of Regulators	Control Features	Output Type	Voltage - Output (Max) [Max]
STMicroelectronics LD29150DT18R	125 °C	-40 C	Positive	180 µA	80 mA	1.8 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	14 V	72 dB	1
STMicroelectronics LD29150DT25R	125 °C	-40 C	Positive	180 µA	80 mA	2.5 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	14 V	70 dB	1
STMicroelectronics LD29150DT33	125 °C	-40 C	Positive	180 µA	80 mA	3.3 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	14 V	67 dB	1
STMicroelectronics LD29150DT33R	125 °C	-40 C	Positive	180 µA	80 mA	3.3 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	14 V	67 dB	1
STMicroelectronics LD29150PT33	125 °C	-40 C	Positive	180 µA	80 mA	3.3 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	PPAK	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	14 V	67 dB	1	Enable
STMicroelectronics LD29150PT33R	125 °C	-40 C	Positive	180 µA	80 mA	3.3 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	PPAK	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	14 V	67 dB	1	Enable
STMicroelectronics LD29150PTR	125 °C	-40 C	Positive	180 µA	80 mA	1.23 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	PPAK	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	14 V	75 dB	1	Enable	Adjustable	13.3 V

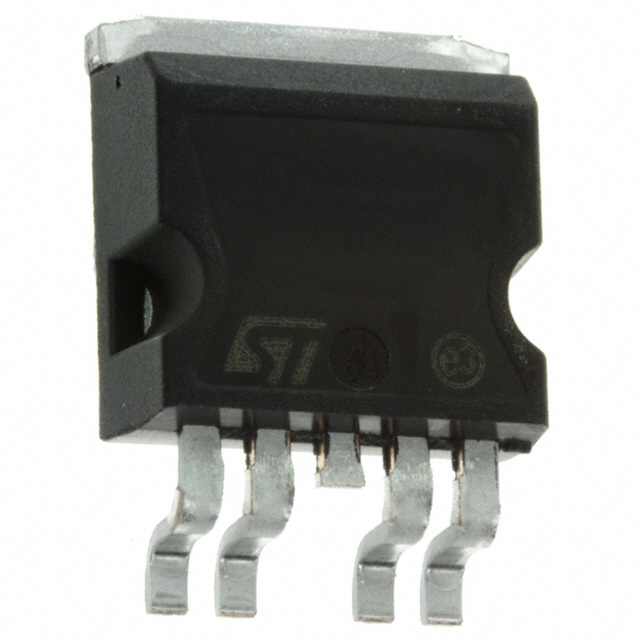

STMicroelectronics LD29150P2T33R	125 °C	-40 C	Positive	180 µA	80 mA	3.3 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	P2PAK	P2PAK (4 Leads + Tab)	14 V	67 dB	1	Enable
STMicroelectronics LD29150DT50R	125 °C	-40 C	Positive	180 µA	80 mA	5 V	0.7 V	Surface Mount	1.5 A	Over Current Over Temperature	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	14 V	64 dB	1
STMicroelectronics LD29150PT15R	125 °C	-40 C	Positive	180 µA	80 mA	1.5 V		Surface Mount	1.5 A	Over Current Over Temperature	PPAK	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	14 V	75 dB	1	Enable

Catalog

1.5 A, very low drop voltage regulators

Description

The LD29150 is a high current, high accuracy, low-dropout voltage regulator series. These regulators feature 400 mV dropout voltage and very low ground current. Designed for high current loads, these devices are also used in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. Typical applications are in power supply switching post regulation, series power supply for monitors, series power supply for VCRs and TVs, computer systems and battery powered systems.
