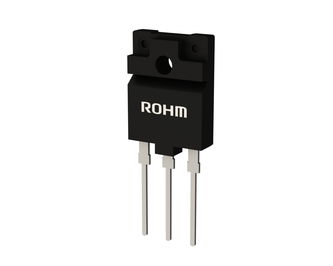

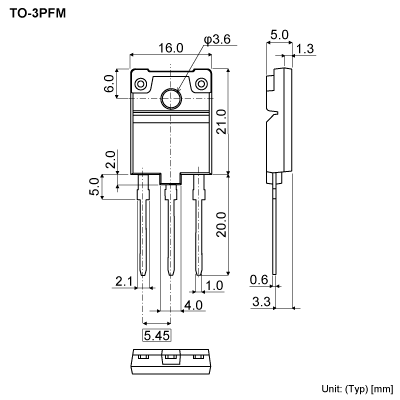

RGW40TK65D Series

High-Speed Fast Switching Type, 650V 16A, FRD Built-in, TO-3PFM, Field Stop Trench IGBT

Catalog

High-Speed Fast Switching Type, 650V 16A, FRD Built-in, TO-3PFM, Field Stop Trench IGBT

Part	Reverse Recovery Time (trr)	Mounting Type	Td (on/off) @ 25°C	IGBT Type	Package / Case	Current - Collector Pulsed (Icm)	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Test Condition	Gate Charge	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Switching Energy
Rohm Semiconductor RGW40TK65DGVC11	92 ns	Through Hole	33 ns 76 ns	Trench Field Stop	SC-93-3 TO-3PFM	80 A	27 A	1.9 V	10 Ohm 15 V 20 A 400 V	59 nC	650 V	61 W	-40 C	175 °C	TO-3PFM
Rohm Semiconductor RGW40TK65GVC11		Through Hole	33 ns 76 ns	Trench Field Stop	SC-93-3 TO-3PFM	80 A	27 A	1.9 V	10 Ohm 15 V 20 A 400 V	59 nC	650 V	61 W	-40 C	175 °C	TO-3PFM	300 µJ 330 µJ

Catalog

High-Speed Fast Switching Type, 650V 16A, FRD Built-in, TO-3PFM, Field Stop Trench IGBT

Key Features

• Low Collector - Emitter Saturation Voltage, High Speed Switching, Low Switching Loss & Soft Switching, Built in Very Fast & Soft Recovery FRD, Pb - free Lead Plating ; RoHS Compliant

Description

RGW40TK65D is a high speed switching IGBT, suitable for PFC, Solar Inverter, UPS, Welding, IH applications.
