JANTXV2N3792-Transistor Series

PNP Silicon High-Power -60V to -80V, -10A

Catalog

PNP Silicon High-Power -60V to -80V, -10A

Part	Qualification	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic [Max]	Package / Case	Grade	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type
Microchip Technology JANTX2N3792	MIL-PRF-19500/379	5 W	2.5 V	TO-204AA TO-3	Military	PNP	30 hFE	80 V	Through Hole
Microchip Technology JANTXV2N3792	MIL-PRF-19500/379	5 W	2.5 V	TO-204AA TO-3	Military	PNP	50	80 V	Through Hole

Catalog

PNP Silicon High-Power -60V to -80V, -10A

Key Features

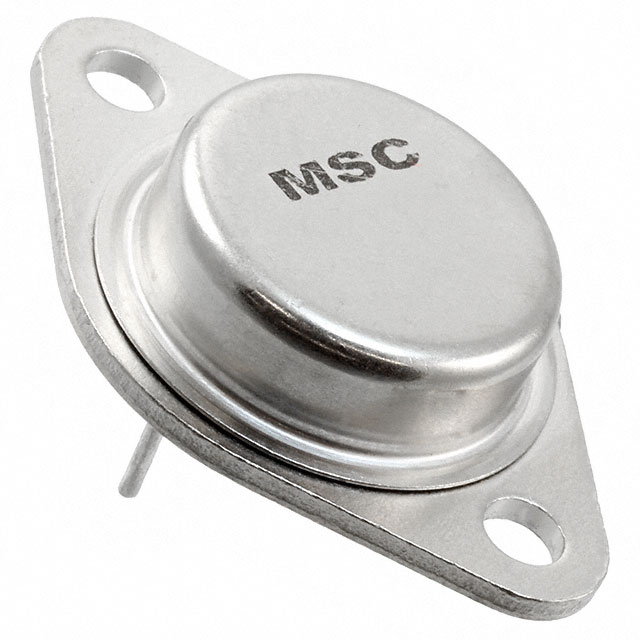

- The device packages for the encapsulated device types are similar to TO-3.

Description

This specification covers the performance requirements for power PNP silicon 2N3791 and 2N3792 transistors. Four levels of product assurance (JAN, JANTX, JANTXV and JANS) are provided for each encapsulated device type as specified in MIL-PRF-19500/379.
