CDLL5819 Series

Catalog

RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 1 ELEMENT, 1A, SILICON, DO-213AB

Part	Speed	Technology	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case
Microchip Technology CDLL5819/TR	200 mA 500 ns	Schottky	1 A	45 V	DO-213AA	125 °C	-65 C	Surface Mount	70 pF	50 µA	490 mV	DO-213AA

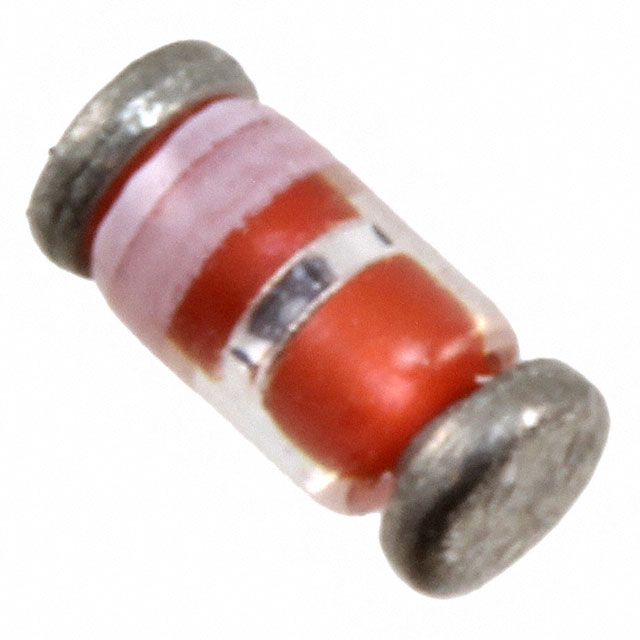

Microchip Technology CDLL5819E3	200 mA 500 ns	Schottky	1 A	45 V	DO-213AB	125 °C	-65 C	Surface Mount	70 pF	50 µA	490 mV	DO-213AB MELF (Glass)
