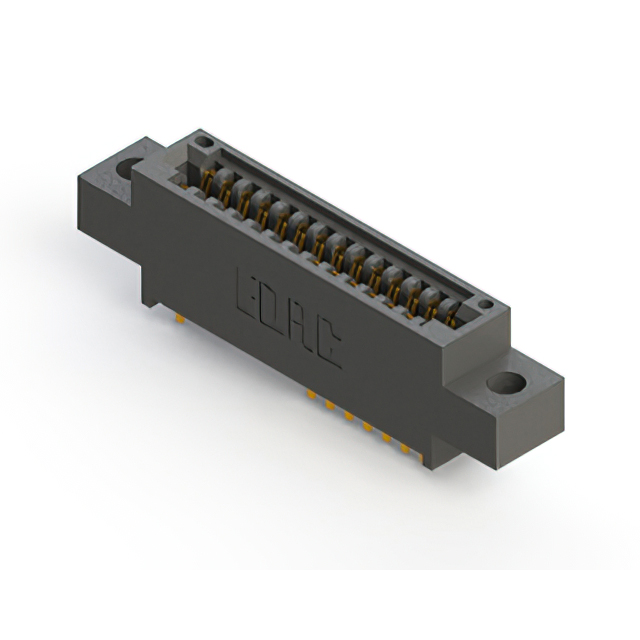

895-028 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 28POS 0.100
...
| Part | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish | Flange Feature | Flange Feature | Number of Rows | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Gender | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Material - Insulation | Contact Material | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 3.25 mm | 0.128 in | 2 | Wire Wrap | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | |||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Solder | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | 4-40 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder Eyelet(s) | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Solder | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | 4-40 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Wire Wrap | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Wire Wrap | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole Right Angle | Gold | 1 | Solder | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | M3 Threaded Insert Top Mount Opening |
