RF Connectors / Coaxial Connectors
RF Connectors / Coaxial Connectors
| Part | Body Finish | Body Material | Center Contact Plating | Dielectric Material | Mating Cycles | Center Contact Material | Housing Color | Impedance | Shield Termination | Cable Group | Contact Termination | Frequency - Max [Max] | Fastening Type | Connector Type | Connector Style | Mounting Type | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Adapter Series | Fastening Type | Adapter Type | Center Gender | Style | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||
Hirose Electric Co Ltd | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | Gold | 50 Ohms | Crimp | RG-58 | Solder | 12.4 GHz | Snap-On | Female Socket Jack | POB | Free Hanging (In-Line) | 1 | |||||||||

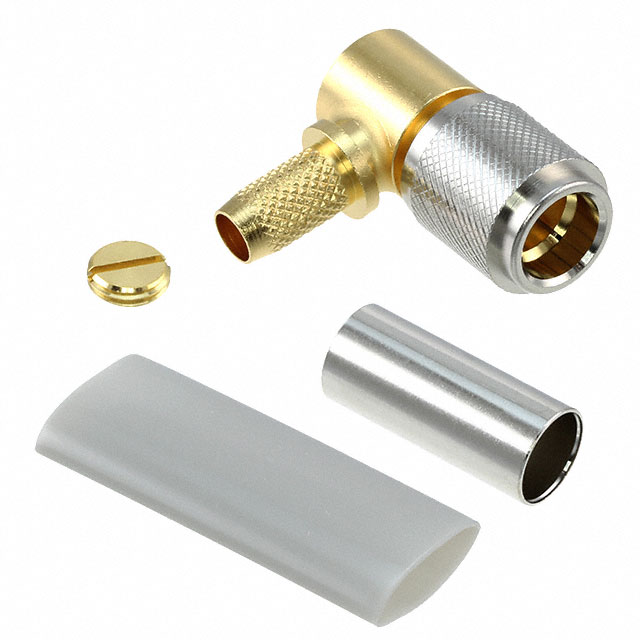

 Hirose Electric Co Ltd | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | Gold | 50 Ohms | Crimp | 142B RG-55 | Solder | 6000 MHz | Snap-On | Plug Male Pin | POB | Free Hanging (In-Line) Right Angle | 1 | -55 C | 85 °C | 1 Connector 1 Heat Shrink | ||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||
Hirose Electric Co Ltd | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | Silver | 50 Ohms | Crimp | RG-58 | Solder | 12.4 GHz | Snap-On | Plug Male Pin | POB | Free Hanging (In-Line) Right Angle | 1 | |||||||||
Hirose Electric Co Ltd | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | 12.4 GHz | Snap-On | Free Hanging (In-Line) | -55 C | 85 °C | POB to POB | Snap-On | Jack to Jack | Female to Female | Straight | Same Series | |||||||||
Hirose Electric Co Ltd | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | Silver | 50 Ohms | Crimp | Solder | 12.4 GHz | Snap-On | Plug Male Pin | POB | Free Hanging (In-Line) Right Angle | 1 | ||||||||||
Hirose Electric Co Ltd | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | Silver | 50 Ohms | Crimp | Solder | 12.4 GHz | Snap-On | Plug Male Pin | POB | Free Hanging (In-Line) Right Angle | 1 |
