DF63A Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN CRIMP SKT 16-18AWG
| Part | Type | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Contact Termination | Note | Insulation Material | Fastening Type | Mounting Type | Pitch | Pitch | Color | Number of Positions | Number of Rows | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Voltage Rating | Termination | Insulation Color | Current Rating (Amps) | Contact Material | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Positions Loaded | Contact Shape | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Stamped | Socket | 16 AWG | 18 AWG | Gold | Crimp | ||||||||||||||||||||||||||||

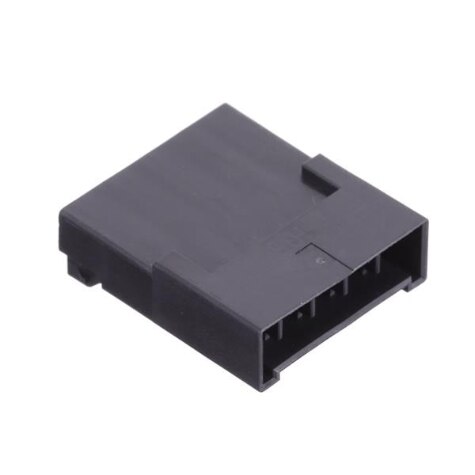

 Hirose Electric Co Ltd | Crimp | Contacts Not Included | Polybutylene Terephthalate (PBT) | Latch Holder | Free Hanging (In-Line) | 3.96 mm | 0.156 in | Black | 5 | 1 | Plug | -55 C | 105 ░C | Male Pin | ||||||||||||||||||||
 Hirose Electric Co Ltd | Crimp | Contacts Not Included | Polybutylene Terephthalate (PBT) | Latch Holder | Free Hanging (In-Line) | 3.96 mm | 0.156 in | Black | 2 | 1 | Plug | -55 C | 105 ░C | Male Pin | ||||||||||||||||||||
 Hirose Electric Co Ltd | Crimp | Contacts Not Included | Polybutylene Terephthalate (PBT) | Latch Holder | Free Hanging (In-Line) | 3.96 mm | 0.156 in | Black | 1 | Plug | -55 C | 105 ░C | Male Pin | |||||||||||||||||||||
Hirose Electric Co Ltd | Stamped | Socket | 16 AWG | 18 AWG | Gold | Crimp | ||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Crimp | Contacts Not Included | Polybutylene Terephthalate (PBT) | Latch Holder | Free Hanging (In-Line) | 3.96 mm | 0.156 in | Black | 4 | 1 | Plug | -55 C | 105 ░C | Male Pin | ||||||||||||||||||||
Hirose Electric Co Ltd | Stamped | Socket | 16 AWG | 18 AWG | Tin | Crimp | ||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Crimp | Contacts Not Included | Polybutylene Terephthalate (PBT) | Latch Holder | Free Hanging (In-Line) | 3.96 mm | 0.156 in | Black | 6 | 1 | Plug | -55 C | 105 ░C | Male Pin | ||||||||||||||||||||
Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | Through Hole | 2 | 1 | Header | -35 °C | 105 ░C | Male Pin | 630 V | Solder | Black | 10 A | Phosphor Bronze | Gold | 3.96 mm | 0.156 in | 10 mm | 0.394 " | 39.4 µin | 1 µm | All | Square | UL94 V-0 | ||||||||||
Hirose Electric Co Ltd | Stamped | Socket | 19.5 AWG | 22 AWG | Tin | Crimp |
