GT8EH Series

Catalog

CONN HEADER SMD 24POS 2MM

Part	Mated Stacking Heights	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Insulation Material	Material Flammability Rating	Number of Positions Loaded	Features	Shrouding	Contact Material	Number of Rows [custom]	Connector Type	Style	Contact Shape	Insulation Height [z]	Insulation Height [z]	Number of Positions	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Voltage Rating
Hirose Electric Co Ltd GT8EH-24DP-2V(16)	13.35 mm	Latch Holder	Black	0.079 "	2 mm	Male Pin	Surface Mount	Polyphenylene Sulfide (PPS)	UL94 V-0	All	Solder Retention	Shrouded - 4 Wall	Brass	2	Header	Board to Cable/Wire	Square	11.94 mm	0.47 in	24	Solder	2 mm	0.079 in
Hirose Electric Co Ltd GT8EH-10(4)P-2H(01)

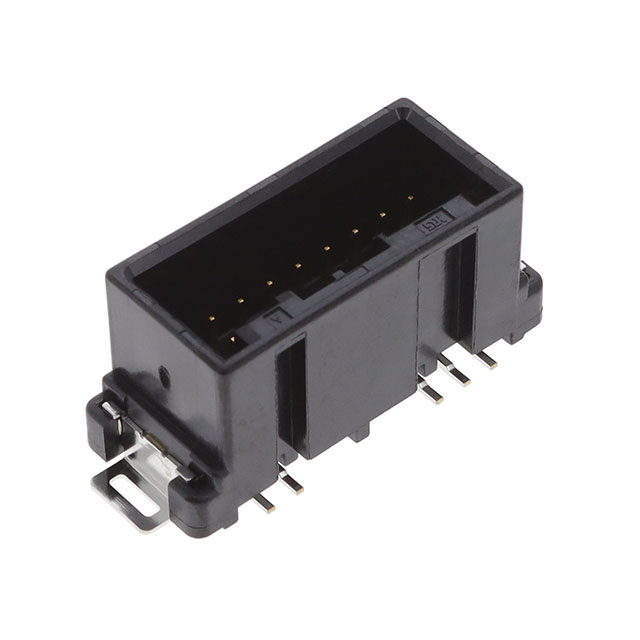

Hirose Electric Co Ltd GT8EH-14DP-2V(01)	13.35 mm	Latch Holder	Black	0.079 "	2 mm	Male Pin	Surface Mount	Polyphenylene Sulfide (PPS)	UL94 V-0	All	Solder Retention	Shrouded - 4 Wall	Brass	2	Header	Board to Cable/Wire	Square	11.94 mm	0.47 in	14	Solder	2 mm	0.079 in
Hirose Electric Co Ltd GT8EH-12DP-2V(16)
Hirose Electric Co Ltd GT8EH-12DP-2V(15)	13.35 mm	Latch Holder	Black	0.079 "	2 mm	Male Pin	Surface Mount	Polyphenylene Sulfide (PPS)	UL94 V-0	All	Solder Retention	Shrouded - 4 Wall	Brass	2	Header	Board to Cable/Wire	Square	11.94 mm	0.47 in	12	Solder	2 mm	0.079 in
Hirose Electric Co Ltd GT8EH-3P-2V	13.35 mm	Latch Holder	Black	0.079 "	2 mm	Male Pin	Surface Mount	Polyphenylene Sulfide (PPS)		All	Pick and Place Solder Retention	Shrouded - 4 Wall	Brass		Header	Board to Cable/Wire	Square	11.94 mm	0.47 in		Solder			Tin	1

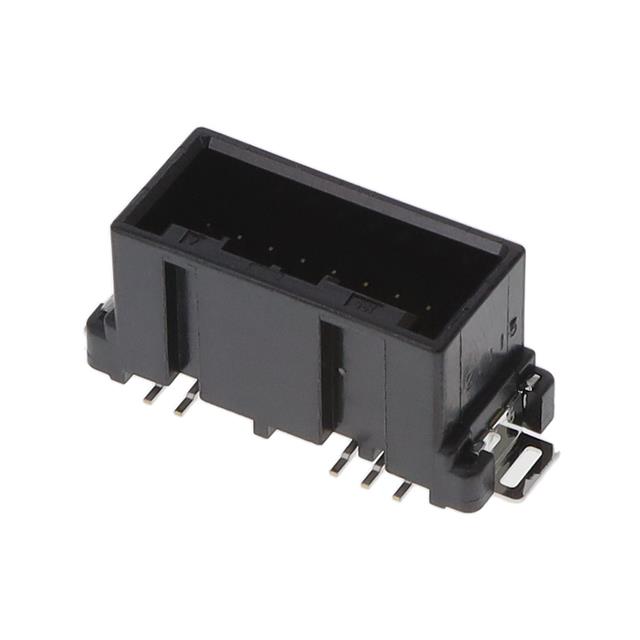

Hirose Electric Co Ltd GT8EH-14DP-2V(56)		Latch Holder	Black	0.079 "	2 mm	Male Pin	Surface Mount	Polyphenylene Sulfide (PPS)		All	Solder Retention	Shrouded - 4 Wall	Brass	2	Header	Board to Cable/Wire	Square	11.94 mm	0.47 in	14	Solder	2 mm	0.079 in	Tin		-40 C	105 ░C	Gold	250 VAC
