32-4500 Series

Catalog

SOCKET ADAPTER SOJ TO 32DIP 0.4

Part	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination Post Length	Termination Post Length	Termination	Board Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Convert From (Adapter End)	Contact Finish - Mating	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Pitch - Post	Pitch - Post	Number of Pins

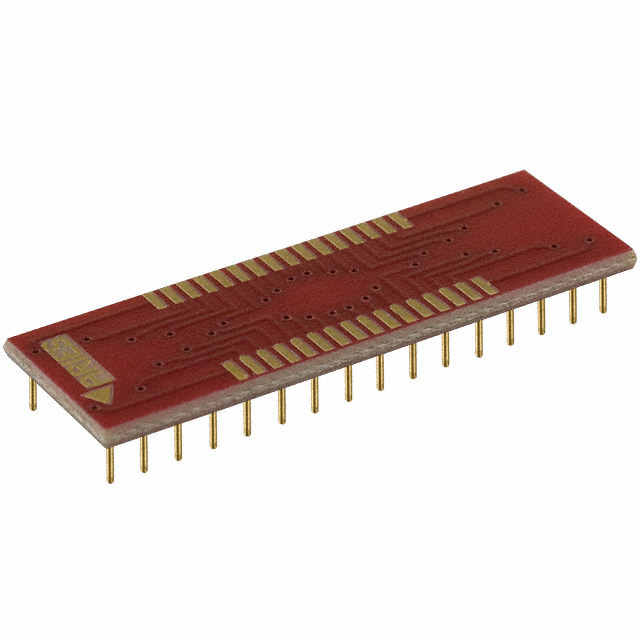

Aries Electronics 32-450001-11-RC	Brass	10 Áin	0.25 çm	0.125 in	3.18 mm	Solder	FR4 Epoxy Glass	Gold	1.27 mm	0.05 in	Through Hole	SOJ	Gold	10.16 mm	0.4 in	DIP	0.1 in	2.54 mm	32

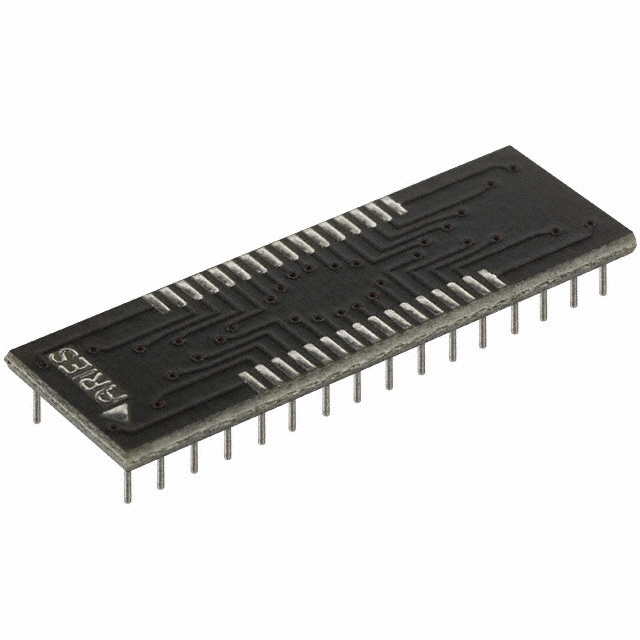

Aries Electronics 32-450001-10				0.125 in	3.18 mm	Solder	FR4 Epoxy Glass		1.27 mm	0.05 in	Through Hole	SOJ		10.16 mm	0.4 in	DIP	0.1 in	2.54 mm	32
