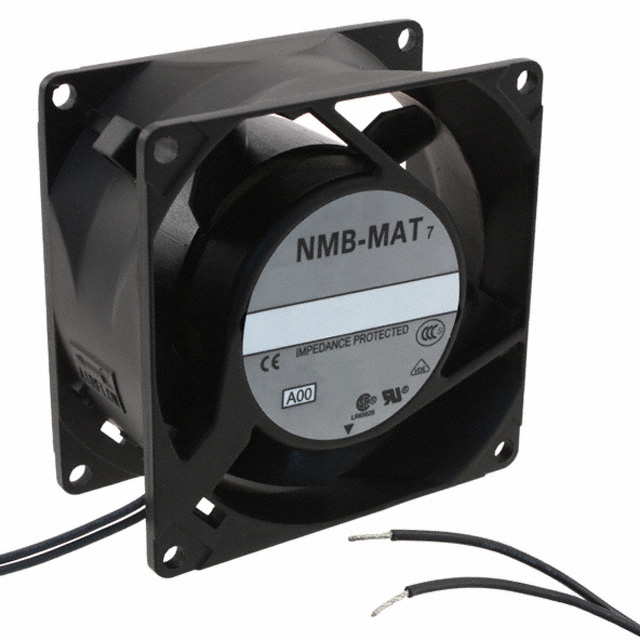

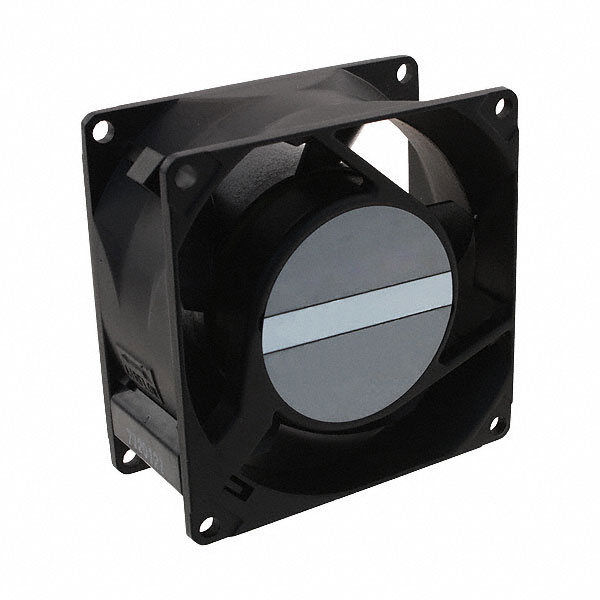

3115FS Series

Catalog

FAN AXIAL 80X38MM 115VAC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Approval Agency	Bearing Type	Voltage - Rated	Weight [custom]	Weight [custom]	Fan Type	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	RPM	Width [y]	Termination	Power (Watts)	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Termination	Air Flow

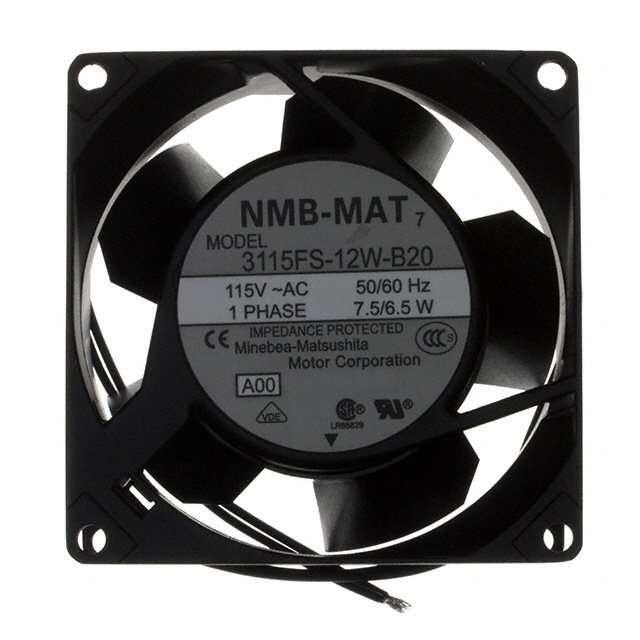

NMB TECHNOLOGIES 3115FS-12W-B20-A00	Plastic	0.09 A	Aluminum	CE CSA TUV UL VDE	Ball	115 VAC	0.74 lb	335.66 g	Tubeaxial	40 dB(A)	70 °C	-10 °C	0.756 m³/min	27 CFM	2700 RPM	38 mm	2 Wire Leads	7 W	0.13 in H2O	32.5 Pa	80 mm	80 mm

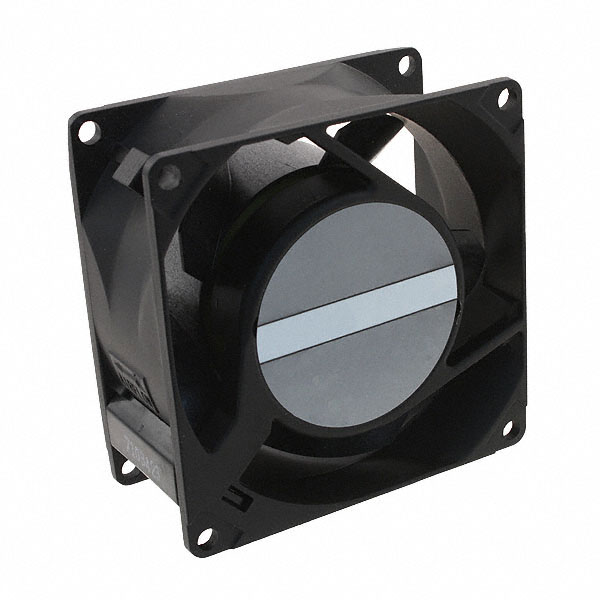

NMB TECHNOLOGIES 3115FS-12T-B10-A00	Plastic	0.087 A	Aluminum	CE CSA TUV UL VDE	Ball	115 VAC	0.74 lb	335.66 g	Tubeaxial	36 dB	70 °C	-10 °C	0.616 m³/min	22 CFM	2100 RPM	38 mm		6 W	0.09 in H2O	22.5 Pa	80 mm	80 mm	2

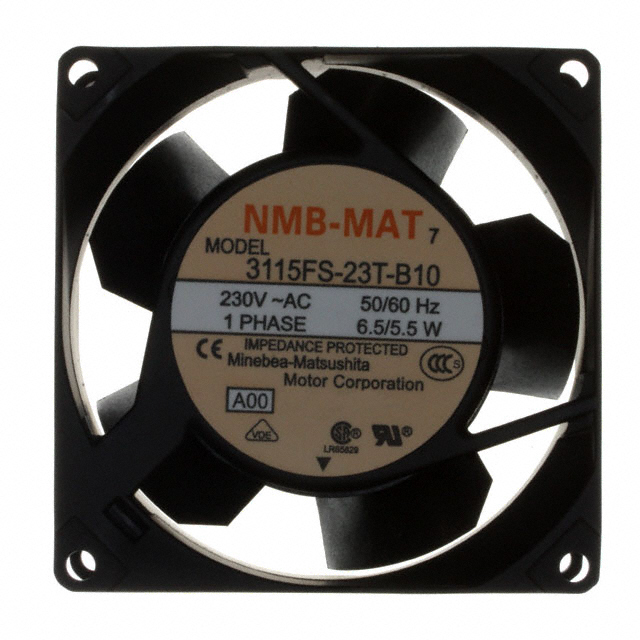

NMB TECHNOLOGIES 3115FS-23T-B10-A00	Plastic	50 mA	Aluminum	CE CSA TUV UL VDE	Ball	230 VAC	0.74 lb	335.66 g	Tubeaxial	35 dB	70 °C	-10 °C	0.56 m³/min	20 CFM	2050 RPM	38 mm		6.5 W	0.09 in H2O	22.5 Pa	80 mm	80 mm	2	20 CFM

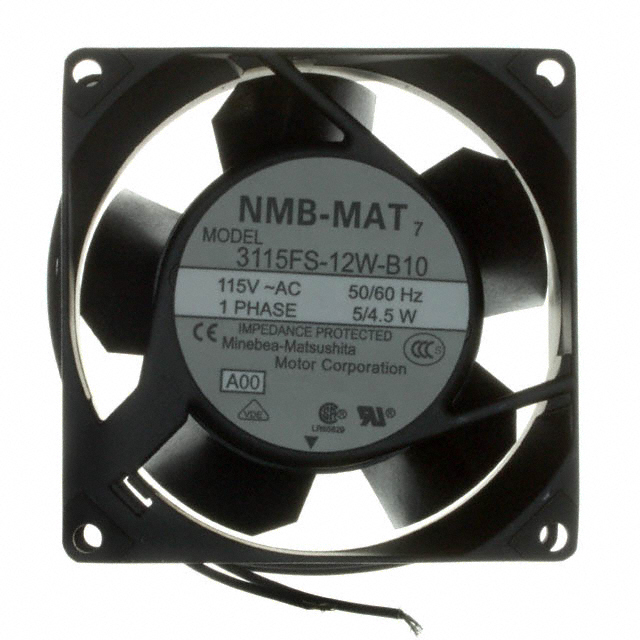

NMB TECHNOLOGIES 3115FS-12W-B10-A00	Plastic	0.087 A	Aluminum	CE CSA TUV UL VDE	Ball	115 VAC	0.74 lb	335.66 g	Tubeaxial	36 dB	70 °C	-10 °C	0.616 m³/min	22 CFM	2100 RPM	38 mm	2 Wire Leads	6 W	0.09 in H2O	22.5 Pa	80 mm	80 mm

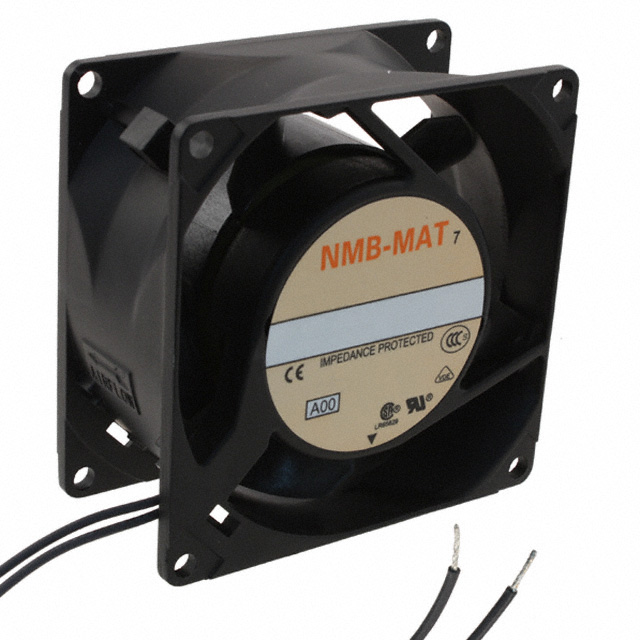

NMB TECHNOLOGIES 3115FS-23W-B30-A00	Plastic	0.065 A	Aluminum	CE CSA TUV UL VDE	Ball	230 VAC	0.74 lb	335.66 g	Tubeaxial	44 dB(A)	70 °C	-10 °C	0.924 mł/min	33 CFM	3250 RPM	38 mm	2 Wire Leads	8 W	0.18 in H2O	44.8 Pa	80 mm	80 mm
NMB TECHNOLOGIES 3115FS-12T-B20-A00	Plastic	0.09 A	Aluminum	CE CSA TUV UL VDE	Ball	115 VAC	0.74 lb	335.66 g	Tubeaxial	40 dB(A)	70 °C	-10 °C	0.756 m³/min	27 CFM	2700 RPM	38 mm		7 W	0.13 in H2O	32.5 Pa	80 mm	80 mm	2

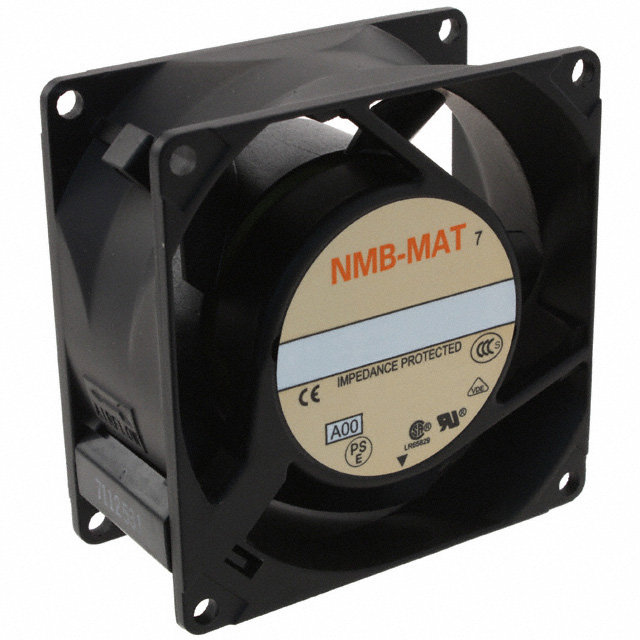

NMB TECHNOLOGIES 3115FS-23T-B30-A00	Plastic	0.065 A	Aluminum	CE CSA TUV UL VDE	Ball	230 VAC	0.74 lb	335.66 g	Tubeaxial	44 dB(A)	70 °C	-10 °C	0.924 mł/min	33 CFM	3250 RPM	38 mm		8 W	0.18 in H2O	44.8 Pa	80 mm	80 mm	2
NMB TECHNOLOGIES 3115FS-23T-B20-A00	Plastic	60 mA	Aluminum	CE CSA TUV UL VDE	Ball	230 VAC	0.74 lb	335.66 g	Tubeaxial	40 dB(A)	70 °C	-10 °C	0.784 m³/min	28 CFM	2750 RPM	38 mm		7.5 W	0.13 in H2O	32.5 Pa	80 mm	80 mm	2
NMB TECHNOLOGIES 3115FS-23W-B20-A00	Plastic	60 mA	Aluminum	CE CSA TUV UL VDE	Ball	230 VAC	0.74 lb	335.66 g	Tubeaxial	40 dB(A)	70 °C	-10 °C	0.784 m³/min	28 CFM	2750 RPM	38 mm	2 Wire Leads	7.5 W	0.13 in H2O	32.5 Pa	80 mm	80 mm
NMB TECHNOLOGIES 3115FS-12W-B30-A00	Plastic	100 mA	Aluminum	CE CSA TUV UL VDE	Ball	115 VAC	0.74 lb	335.66 g	Tubeaxial	44 dB(A)	70 °C	-10 °C	0.896 m³/min	32 CFM	3250 RPM	38 mm	2 Wire Leads	8.5 W	0.18 in H2O	44.8 Pa	80 mm	80 mm		32 CFM
