FASTIN-FASTON 110 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

.110 SERIES FASTIN-

...

Part	Length - Overall [x]	Length - Overall [x]	Termination	Tab Width	Tab Width	Contact Finish	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Contact Material	Tab Thickness	Tab Thickness	Mounting Type	Tab Length	Tab Length	Terminal Type	Material	Number of Positions	Stacking Direction	Color	Style	Wire Gauge [custom]	Wire Gauge [custom]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Tab Length [x]	Tab Length [x]	Wire Gauge	Note	For Use With/Related Products	For Use With/Related Products	Terminal Size	Terminal Size
TE Connectivity AMP Connectors 880638-2	22 mm	0.866 in	Crimp	0.11 "	2.79 mm	Tin	Non-Insulated	17 AWG	14 AWG	Male	Brass	0.81 mm	0.032 in	Free Hanging (In-Line)	12.4 mm	0.488 in	Standard
TE Connectivity AMP Connectors 928193-1										Female Receptacle				Free Hanging (In-Line)			Quick Connect Disconnect	Polyester	2	Side to Side	Black	Housing
TE Connectivity AMP Connectors 928930-2			Crimp	0.11 "	2.79 mm	Tin	Non-Insulated			Male	Copper	0.81 mm	0.032 in	Free Hanging (In-Line)			Standard						17	20 AWG

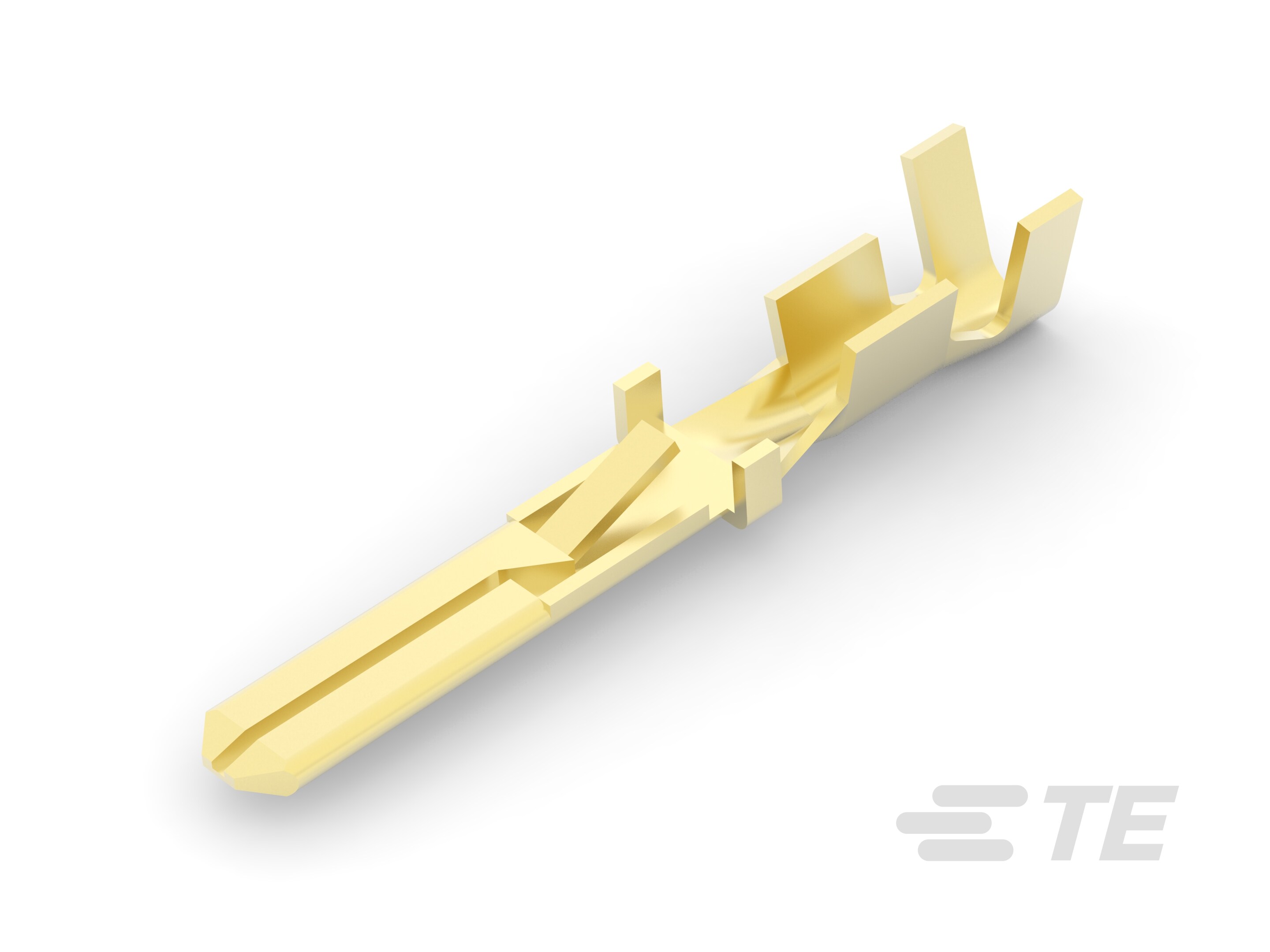

TE Connectivity AMP Connectors 928930-3			Crimp	0.11 "	2.79 mm		Non-Insulated			Male	Copper	0.81 mm	0.032 in	Free Hanging (In-Line)	12.5 mm	0.492 in	Standard						17	20 AWG	0.055 in	1.4 mm	0.091 "	2.31 mm
TE Connectivity AMP Connectors 150571-2	15.88 mm	0.625 in	Crimp	0.11 "	2.79 mm	Tin	Non-Insulated	24 AWG	19.5 AWG	Female	Brass	0.81 mm	0.032 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Standard								0.05 in	1.27 mm	0.08 "	2.03 mm
TE Connectivity AMP Connectors 170014-1	20.5 mm	0.807 in	Crimp	0.11 "	2.79 mm		Non-Insulated	20 AWG	16 AWG	Male	Brass	0.51 mm	0.02 in	Free Hanging (In-Line)	12 mm	0.472 "	Standard
TE Connectivity AMP Connectors 493466-1			Crimp	0.11 "	2.79 mm	Tin	Non-Insulated			Female	Brass	0.71 mm	0.028 in	Free Hanging (In-Line)			Standard												6.3 mm	0.248 "	16 AWG
TE Connectivity AMP Connectors 1217281-2	13.97 mm	0.55 in	Crimp	0.11 "	2.79 mm	Tin	Non-Insulated	24 AWG	19.5 AWG	Female	Brass	0.81 mm	0.032 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Standard
TE Connectivity AMP Connectors 626063-1										Male Tab				Free Hanging (In-Line)			Quick Connect Disconnect	Polyamide (PA) Nylon	1		Natural	Housing										Contacts Not Included	0.11 in	2.79 mm	0.11 in	2.79 mm
TE Connectivity AMP Connectors 881799-3	14 mm	0.551 in	Crimp	0.11 "	2.79 mm		Non-Insulated			Female	Phosphor Bronze	0.81 mm	0.032 in	Free Hanging (In-Line)			Standard						17	20 AWG	0.055 in	1.4 mm	0.091 "	2.31 mm	6.3 mm	0.248 "
