AZSR131 Series
Manufacturer: American Zettler
Beta
⌘K

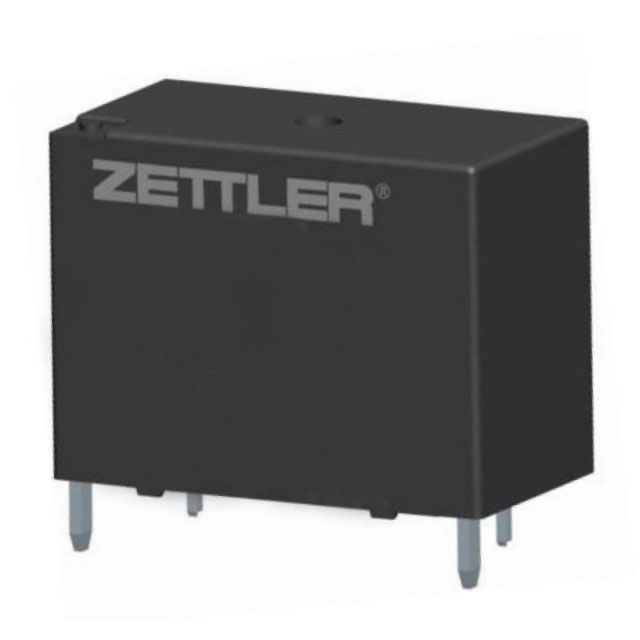

RELAY EV CHG SOLAR SPST 35A 24V
| Part | Coil Resistance | Contact Material | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Coil Voltage | Relay Type | Mounting Type | Termination Style | Coil Current | Must Operate Voltage | Contact Rating (Current) | Release Time | Switching Voltage [Max] | Coil Insulation | Must Release Voltage | Coil Type | Contact Form | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 410 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | 85 °C | -40 C | CQC cURus TUV | 24 VDC | EV Charging Solar | Through Hole | PC Pin | 58.5 mA | 16.8 VDC | 35 A | 10 ms | 277 VAC | Class F | 2.4 VDC | Non Latching | SPST-NO (1 Form A) | 9695 VA |
 American Zettler | 410 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | 85 °C | -40 C | CQC cURus TUV | 24 VDC | EV Charging Solar | Through Hole | PC Pin | 41 mA | 16.8 VDC | 35 A | 10 ms | 277 VAC | Class F | 2.4 VDC | Non Latching | SPST-NO (1 Form A) | 9695 VA |
 American Zettler | 410 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | 85 °C | -40 C | CQC cURus TUV | 24 VDC | EV Charging Solar | Through Hole | PC Pin | 58.5 mA | 16.8 VDC | 35 A | 10 ms | 277 VAC | Class F | 2.4 VDC | Non Latching | SPST-NO (1 Form A) | 9695 VA |

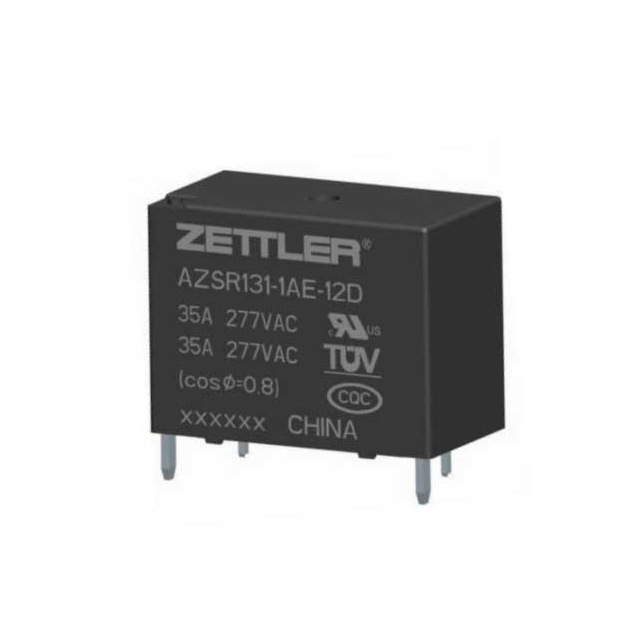

American Zettler | 103 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | 85 °C | -40 C | CQC cURus TUV | 12 VDC | EV Charging Solar | Through Hole | PC Pin | 116.5 mA | 8.4 VDC | 35 A | 10 ms | 277 VAC | Class F | 1.2 VDC | Non Latching | SPST-NO (1 Form A) | 9695 VA |
