ADP1754 Series

1.2A Low-VinLDO Linear Regulator

Catalog

1.2A Low-VinLDO Linear Regulator

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Configuration	Current - Output	Current - Supply (Max) [Max]	Protection Features	Mounting Type	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Number of Regulators	Control Features	Output Type	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]
Analog Devices ADP1754ACPZ-1.1-R7	125 °C	-40 °C	16-WQFN Exposed Pad CSP	Positive	1.2 A	1.4 mA	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	16-LFCSP (4x4)	800 µA	3.6 V	1	Enable Power Good Soft Start	1.81 mOhm	1.1 V

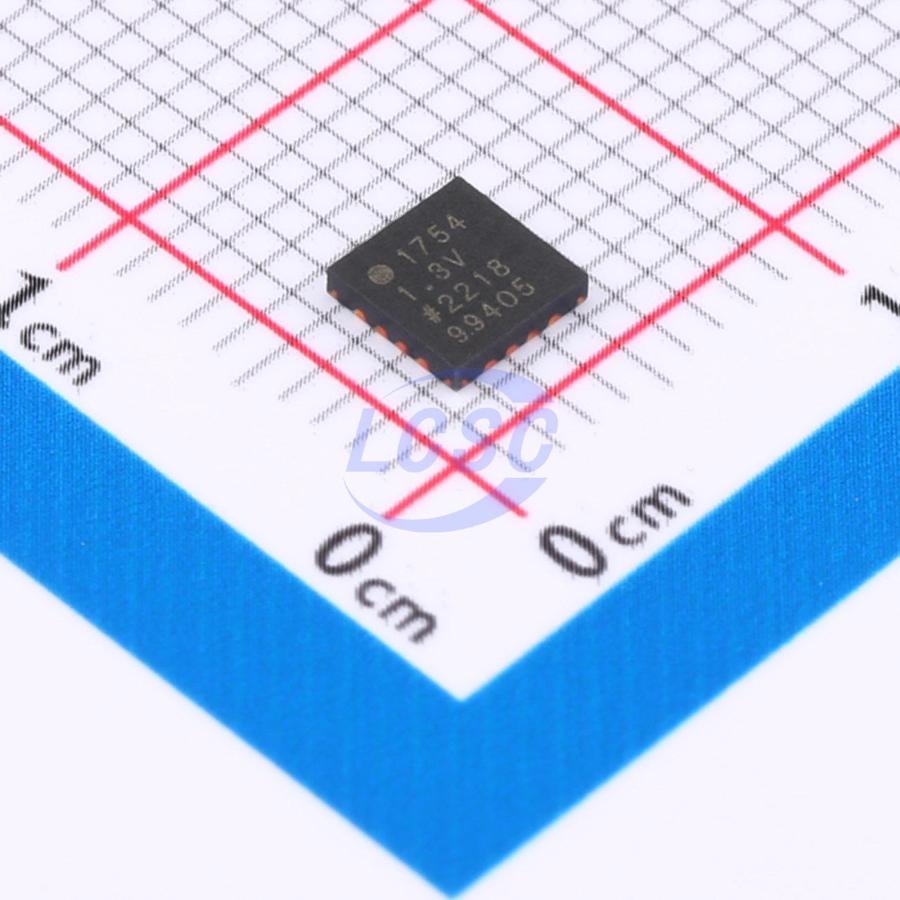

Analog Devices ADP1754ACPZ-1.8-R7	125 °C	-40 °C	16-WQFN Exposed Pad CSP	Positive	1.2 A	1.4 mA	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	16-LFCSP (4x4)	800 µA	3.6 V	1	Enable Power Good Soft Start	1.81 mOhm	1.8 V	0.2 V
Analog Devices ADP1754ACPZ-1.3-R7	125 ¯C	-40 °C	16-WQFN Exposed Pad CSP	Positive	1.2 A	1.4 mA	Over Current Over Temperature Reverse Polarity Short Circuit UVLO	Surface Mount	16-LFCSP (4x4)	800 µA	3.6 V	1	Enable Power Good Soft Start	1.81 mOhm	1.3 V	0.2 V
Analog Devices ADP1754ACPZ-1.0-R7	125 °C	-40 °C	16-WQFN Exposed Pad CSP	Positive	1.2 A	1.4 mA	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	16-LFCSP (4x4)	800 µA	3.6 V	1	Enable Power Good Soft Start	1.81 mOhm	1 V
Analog Devices ADP1754ACPZ-2.5-R7	125 °C	-40 °C	16-WQFN Exposed Pad CSP	Positive	1.2 A	1.4 mA	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	16-LFCSP (4x4)	800 µA	3.6 V	1	Enable Power Good Soft Start	1.81 mOhm	2.5 V	0.2 V

Catalog

1.2A Low-VinLDO Linear Regulator

Key Features

• Maximum output current: 1.2 A

• Input voltage range: 1.6 V to 3.6 V

• Low shutdown current: <2 μA

• Very low dropout voltage: 105 mV @ 1.2 A load

• Initial accuracy: ±1%

• Accuracy over line, load, and temperature: ±2%

• 7 fixed output voltage options with soft start 0.75 V to 2.5 V (ADP1754)

• Adjustable output voltage option with soft start 0.75 V to 3.0 V (ADP1755)

• High PSRR(See data sheet for details)

• 23 μV rms at 0.75 V output

• Stable with small 4.7 μF ceramic output capacitor

• Excellent load and line transient response

Description

The ADP1754 /ADP1755are CMOS, low dropout linear regulators that operate from 1.6 V to 3.6 V and provide up to 1.2A of output current. These Low Vin/ VoutLDOs are ideal for regulation of nanometer FPGA geometries operating from 2.5V down to 1.8V I/O rails, and powering core voltages down to 0.75V. Using an advanced proprietary architecture, they provide high power supply rejection, low noise, and achieve excellent line and load transient response with a small 4.7 µF ceramic output capacitor.The ADP1754 is available in 7 fixed output voltage options. The ADP1755 is available in an adjustable version, which allows output voltages that range from 0.75 V to 3.0 V via an external divider. The ADP1754 / ADP1755 allows an external soft start capacitor to be connected to program the start-up. A power good output allows power system monitors to digitally check the health of the output power rail voltage.The ADP1754 / ADP1755 are available in a 16-lead, 4 mm × 4 mm LFCSP, making them not only very compact solutions, but also providing excellent thermal performance for applications requiring up to 1.2A of output current in a small, low profile footprint.APPLICATIONSServer computersMemory componentsTelecommunications equipmentNetwork equipmentDSP/FPGA/microprocessor suppliesInstrumentation equipment/data acquisition systems
