ECMF02 Series

Common mode filter with ESD protection for high speed serial interface

Catalog

Common mode filter with ESD protection for high speed serial interface

Part	Features	Mounting Type	Filter Type	DC Resistance (DCR) (Max) [Max]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [z]	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case

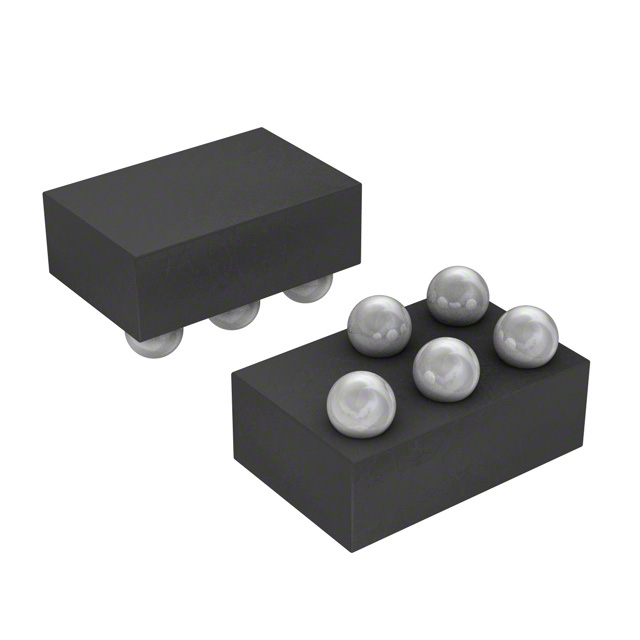

STMicroelectronics ECMF02-2BF3	TVS Diode ESD Protection	Surface Mount	Signal Line	4 Ohm	2	85 °C	-30 ░C

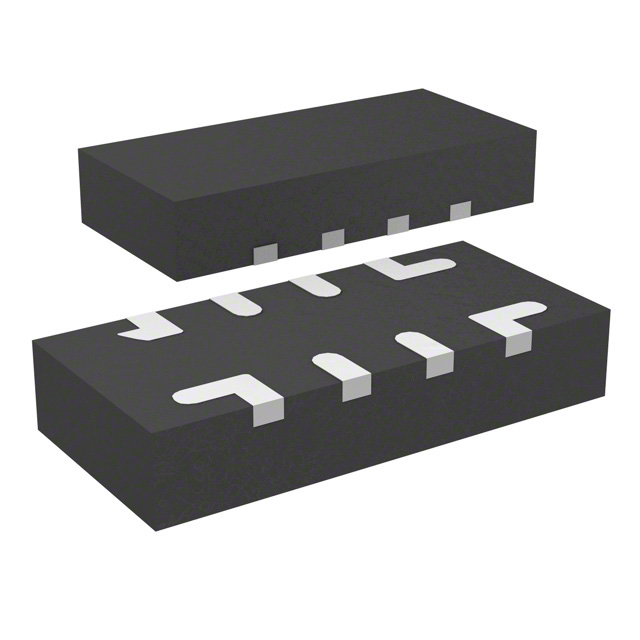

STMicroelectronics ECMF02-4CMX8	TVS Diode ESD Protection	Surface Mount	Signal Line	4 Ohm	2	85 °C 125 °C	-40 C -30 ░C	0.55 mm	0.022 in	0.098 in	1.2 mm	2.5 mm	0.047 in	8-UFDFN

Catalog

Common mode filter with ESD protection for high speed serial interface

Description

The ECMF02-2BF3 is a highly integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed differential serial buses like MIPI D-PHY, MDDI, USB 2.0 and HDMI. The ECMF02-2BF3 can protect and filter one differential lane.
