BPW 34 Series

Catalog

SENSOR PHOTODIODE 880NM 2SMD GW

Part	Viewing Angle	Current - Dark (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Mounting Type	Response Time	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Package / Case	Spectral Range [Max]	Spectral Range [Min]	Active Area

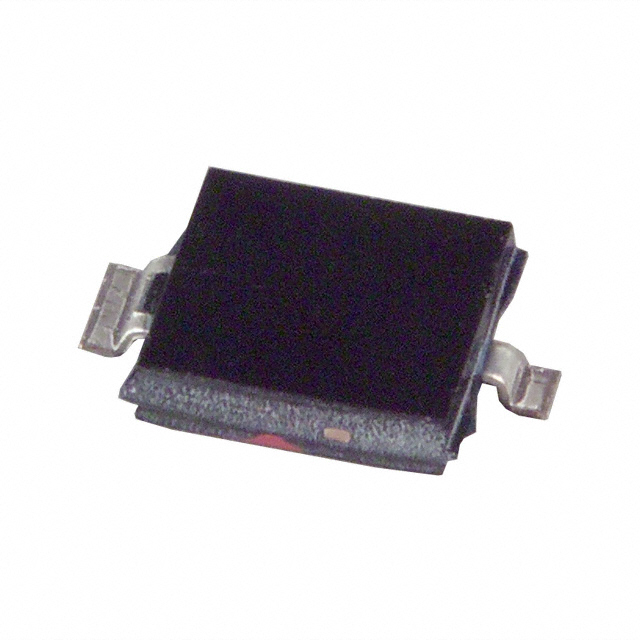

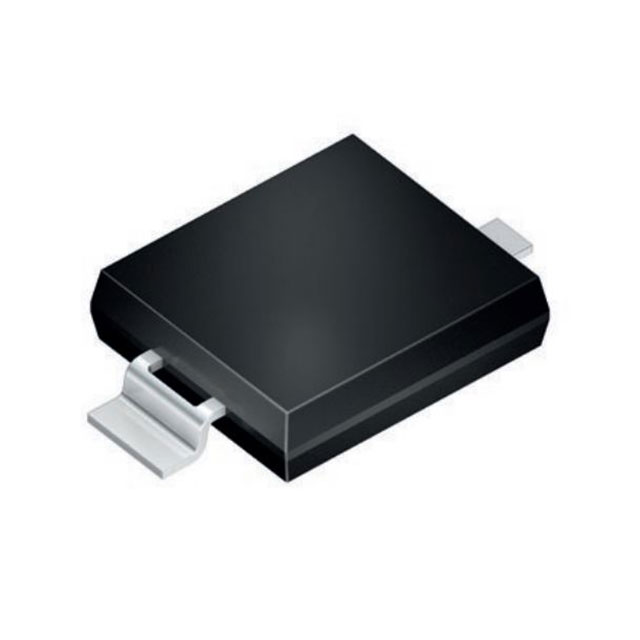

ams-OSRAM USA INC. BPW 34 FAS-Z	120 °	2 nA	-40 C	100 °C	PIN	Surface Mount	20 ns	16 V	880 nm	2-SMD Gull Wing	1100 nm	730 nm	7.02 mm²
ams-OSRAM USA INC. BPW 34 FS-Z	120 °	2 nA	-40 C	100 °C	PIN	Surface Mount	20 ns	16 V	950 nm	2-SMD Gull Wing	1100 nm	780 nm	7 mm²
ams-OSRAM USA INC. BPW 34 FSR-Z	120 °	2 nA	-40 C	100 °C	PIN	Surface Mount	20 ns	16 V	950 nm	2-SMD Gull Wing	1100 nm	780 nm	7 mm²

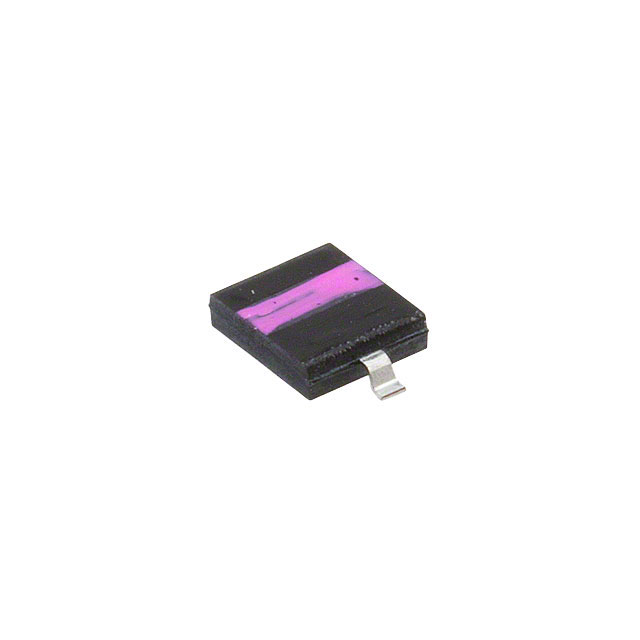

ams-OSRAM USA INC. BPW 34 FASR-Z	120 °	2 nA	-40 C	100 °C	PIN	Surface Mount	20 ns	16 V	880 nm	2-SMD Z-Bend	1100 nm	730 nm

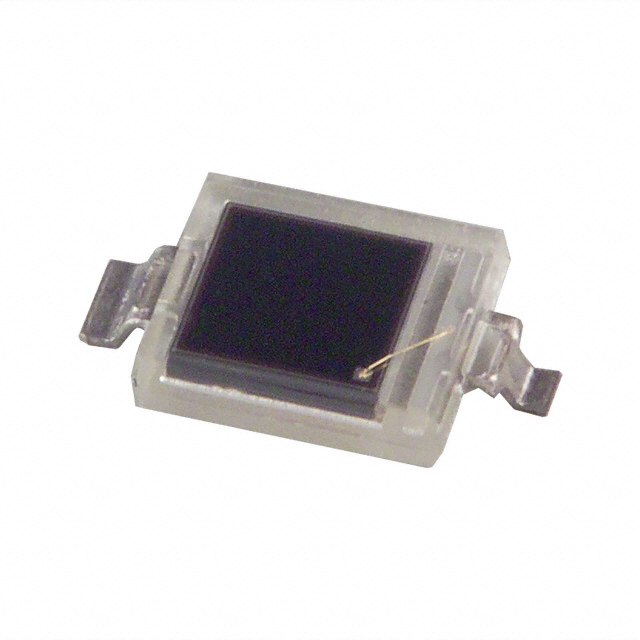

ams-OSRAM USA INC. BPW 34 S-Z	120 °	2 nA	-40 C	100 °C	PIN	Surface Mount	20 ns	32 V	850 nm	2-SMD Gull Wing	1100 nm	400 nm	7 mm²
ams-OSRAM USA INC. BPW 34 SR-Z	120 °	2 nA	-40 C	100 °C	PIN	Surface Mount	20 ns	32 V	850 nm	2-SMD Gull Wing	1100 nm	400 nm	7 mm²
