2CG010 Series

Manufacturer: Tamura

Catalog

GATE DRIVERS GATE DRIVER (CORE, +15V,-10V)

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Logic Voltage - VIL, VIH	Input Type	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Gate Type	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package
Tamura 2CG010DBC11N	28 V	13 V	Half-Bridge	43 A	43 A	2	1.65 V 3.85 V	Non-Inverting	Through Hole	500 ns	500 ns	IGBT	Independent	85 °C	-40 C	Module	Module
Tamura 2CG010BBC12N	28 V	13 V	Half-Bridge	43 A	43 A	2	1.65 V 3.85 V	Non-Inverting	Through Hole	500 ns	500 ns	IGBT SiC MOSFET	Independent	85 C	-40 ¯C	Module	Module

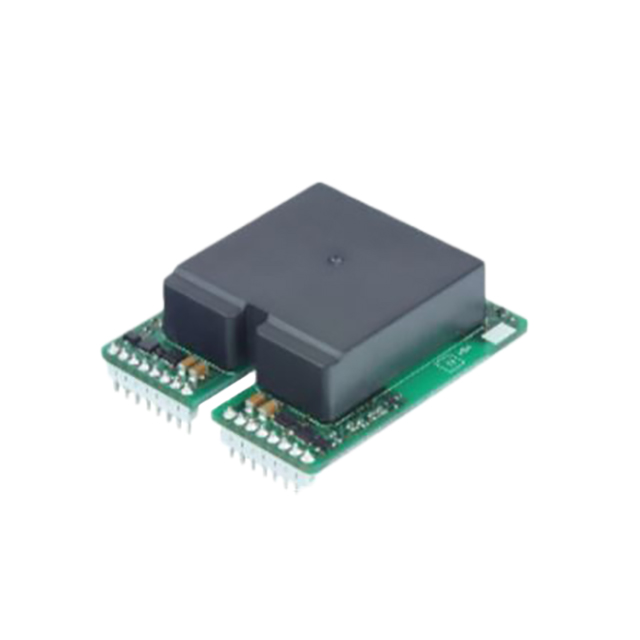

Tamura 2CG010BBC11N	28 V	13 V	Half-Bridge	43 A	43 A	2	1.65 V 3.85 V	Non-Inverting	Through Hole	500 ns	500 ns	IGBT SiC MOSFET	Independent	85 C	-40 ¯C	Module	Module
Tamura 2CG010DBC12N	28 V	13 V	Half-Bridge	43 A	43 A	2	1.65 V 3.85 V	Non-Inverting	Through Hole	500 ns	500 ns	IGBT SiC MOSFET	Independent	85 C	-40 ¯C	Module	Module
Tamura 2CG010BBC14N	28 V	13 V	Half-Bridge	43 A	43 A	2	1.65 V 3.85 V	Non-Inverting	Through Hole	500 ns	500 ns	IGBT SiC MOSFET	Independent	85 C	-40 ¯C	Module	Module
Tamura 2CG010BBC13N	28 V	13 V	Half-Bridge	43 A	43 A	2	1.65 V 3.85 V	Non-Inverting	Through Hole	500 ns	500 ns	IGBT SiC MOSFET	Independent	85 C	-40 ¯C	Module	Module
