STEVAL-ISB047V1 Series
Qi certified 3-coil 15 W wireless charger TX evaluation kit based on STWBC-MC
Manufacturer: STMicroelectronics
Catalog

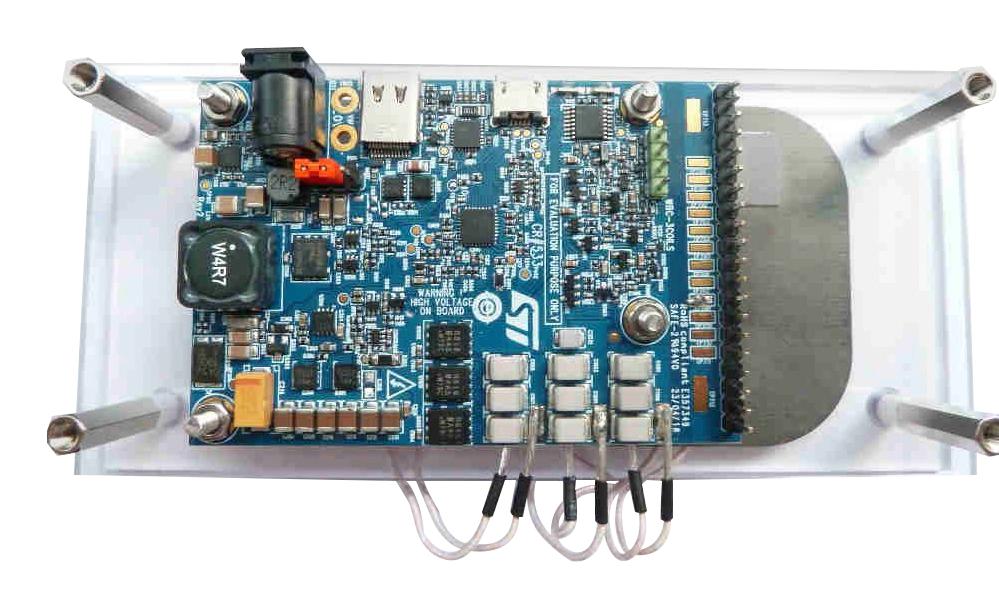

Qi certified 3-coil 15 W wireless charger TX evaluation kit based on STWBC-MC
Description
AI
The evaluation board supports wireless battery charging of Qi-compliant devices up to 15 W. It also supports proprietary fast charging modes up to 10 W.
The STEVAL-ISB047V1 transmitter is based on the STWBC-MC and features a cost-effective half bridge topology, offering external interface via UART.
The STEVAL-ISB047V1 evaluation kit is a full solution, complete with boards, firmware, a GUI for debugging, schematics, layout files and bill of materials.
Tools for STEVAL-ISB047V1 are available on www.st.com, and allow users to access runtime information such as power delivered, regulation error and protocol status. Parameters can also be adjusted with these tools.
