BM23FR0.8 Series

Catalog

CONN HDR 10POS SMD GOLD

Part	Pitch	Pitch	Number of Rows [custom]	Features	Number of Positions	Mounting Type	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish Thickness	Contact Finish Thickness

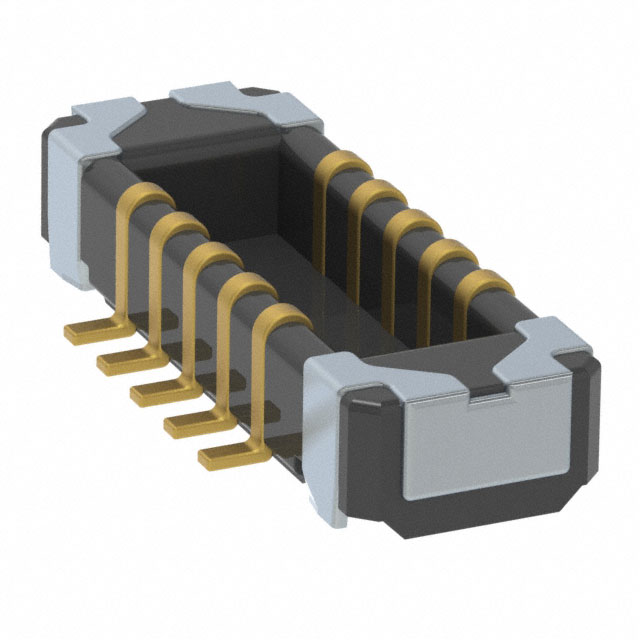

Hirose Electric Co Ltd BM23FR0.8-10DP-0.35V(51)	0.014 in	0.35 mm	2	Solder Retention	10	Surface Mount	Gold	0.8 mm	0.63 mm	0.025 in	Header Outer Shroud Contacts	1.97 Áin	0.05 Ám

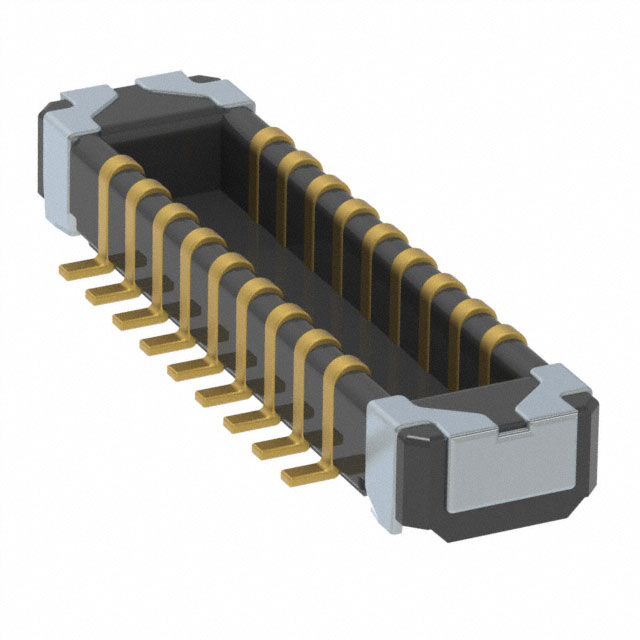

Hirose Electric Co Ltd BM23FR0.8-18DP-0.35V(895)	0.014 in	0.35 mm	2	Solder Retention	18	Surface Mount	Gold	0.8 mm	0.63 mm	0.025 in	Header Outer Shroud Contacts	1.97 Áin	0.05 Ám

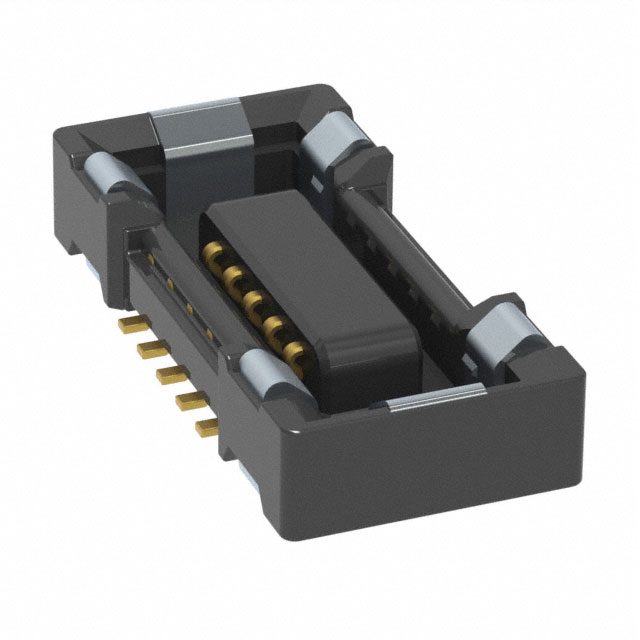

Hirose Electric Co Ltd BM23FR0.8-10DS-0.35V(51)	0.014 in	0.35 mm	2	Solder Retention	10	Surface Mount	Gold	0.8 mm	0.8 mm	0.031 in	Receptacle Center Strip Contacts	1.97 Áin	0.05 Ám

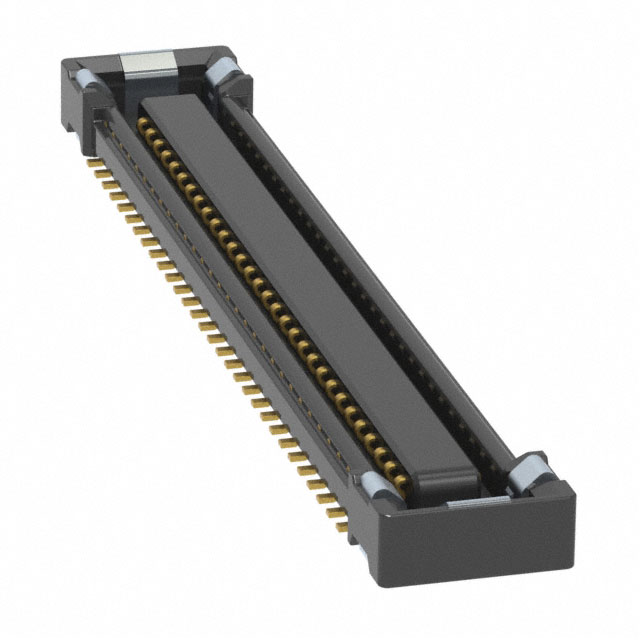

Hirose Electric Co Ltd BM23FR0.8-60DS-0.35V(895)	0.014 in	0.35 mm	2	Solder Retention	60	Surface Mount	Gold	0.8 mm	0.8 mm	0.031 in	Receptacle Center Strip Contacts	1.97 Áin	0.05 Ám
Hirose Electric Co Ltd BM23FR0.8-10DS-0.35V(895)	0.014 in	0.35 mm	2	Solder Retention	10	Surface Mount	Gold	0.8 mm	0.8 mm	0.031 in	Receptacle Center Strip Contacts	1.97 Áin	0.05 Ám
Hirose Electric Co Ltd BM23FR0.8-10DP-0.35V(895)	0.014 in	0.35 mm	2	Solder Retention	10	Surface Mount	Gold	0.8 mm	0.63 mm	0.025 in	Header Outer Shroud Contacts	1.97 Áin	0.05 Ám
Hirose Electric Co Ltd BM23FR0.8-18DP-0.35V(51)	0.014 in	0.35 mm	2	Solder Retention	18	Surface Mount	Gold	0.8 mm	0.63 mm	0.025 in	Header Outer Shroud Contacts	1.97 Áin	0.05 Ám

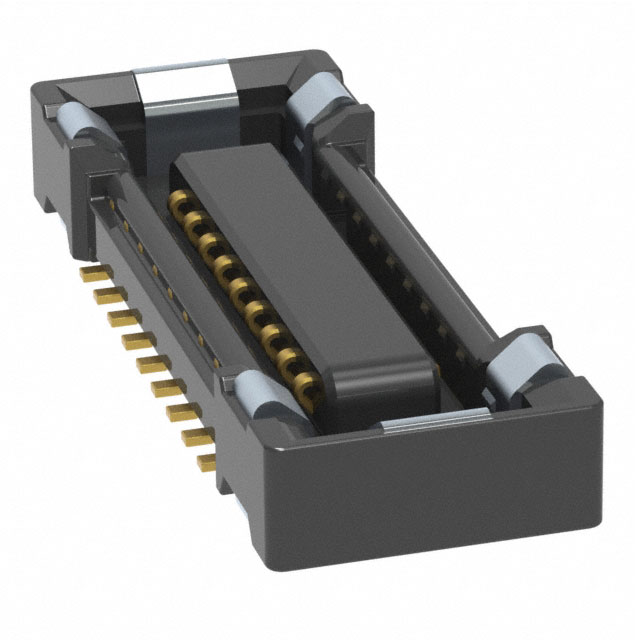

Hirose Electric Co Ltd BM23FR0.8-18DS-0.35V(895)	0.014 in	0.35 mm	2	Solder Retention	18	Surface Mount	Gold	0.8 mm	0.8 mm	0.031 in	Receptacle Center Strip Contacts	1.97 Áin	0.05 Ám
