DF5A Series

Catalog

CONN RCPT HSG 5POS 5.00MM

Part	Note	Contact Type	Number of Rows	Contact Termination	Color	Connector Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pitch	Pitch	Fastening Type	Insulation Material	Mated Stacking Heights	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Shrouding	Style	Contact Material	Contact Length - Post	Contact Length - Post	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Features

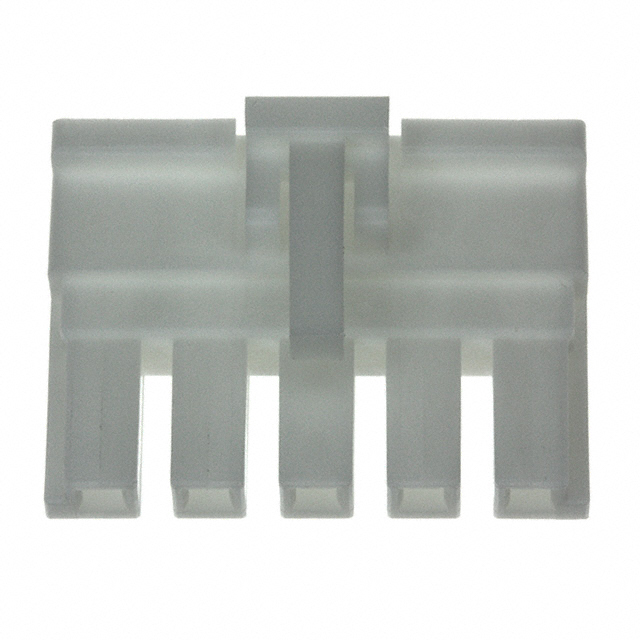

Hirose Electric Co Ltd DF5A-5S-5C	Contacts Not Included	Female Socket	1	Crimp	White	Receptacle	5	85 °C	-35 °C	Free Hanging (In-Line)	0.197 in	5 mm	Latch Holder	Nylon Polyamide (PA)
Hirose Electric Co Ltd DF5A-5P-5DSA(35)		Male Pin	1			Header	5	85 °C	-35 °C	Through Hole			Locking Ramp	Nylon Polyamide (PA)	22.5 mm	Tin	Beige	All	0.591 in	15 mm	Square	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.138 in	3.5 mm	Solder	39.4 µin	1 µm	0.197 "	5 mm	UL94 V-0	Board Guide

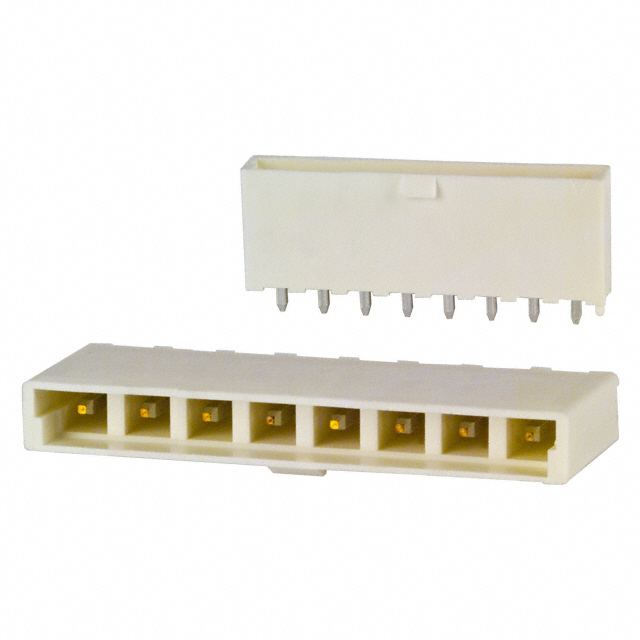

Hirose Electric Co Ltd DF5A-8P-5DSA(05)		Male Pin	1			Header	8	85 °C	-35 °C	Through Hole			Locking Ramp	Nylon Polyamide (PA)	22.5 mm	Tin	Beige	All	0.591 in	15 mm	Square	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.138 in	3.5 mm	Solder	39.4 µin	1 µm	0.197 "	5 mm	UL94 V-0	Board Guide

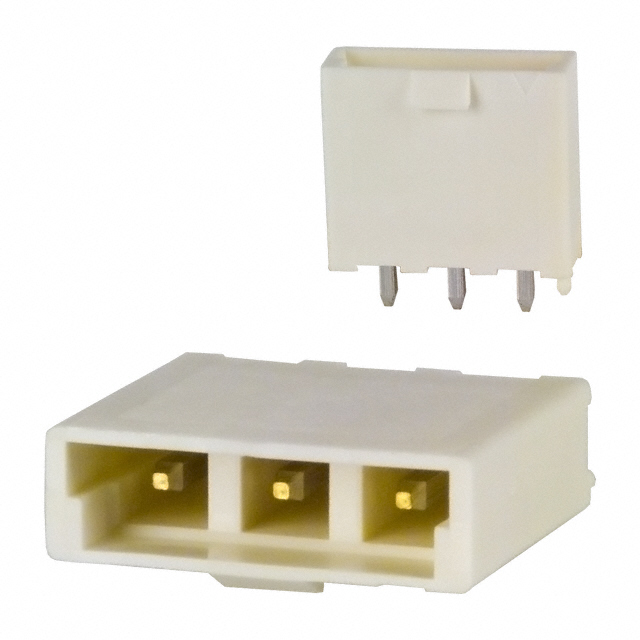

Hirose Electric Co Ltd DF5A-3P-5DSA		Male Pin	1			Header		85 °C	-35 °C	Through Hole			Locking Ramp	Nylon Polyamide (PA)	22.5 mm	Tin	Beige	All	0.591 in	15 mm	Square	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.138 in	3.5 mm	Solder	39.4 µin	1 µm	0.197 "	5 mm	UL94 V-0	Board Guide
Hirose Electric Co Ltd DF5A-5P-5DSA		Male Pin	1			Header	5	85 °C	-35 °C	Through Hole			Locking Ramp	Nylon Polyamide (PA)	22.5 mm	Tin	Beige	All	0.591 in	15 mm	Square	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.138 in	3.5 mm	Solder	39.4 µin	1 µm	0.197 "	5 mm	UL94 V-0	Board Guide
Hirose Electric Co Ltd DF5A-5P-5DSA(78)

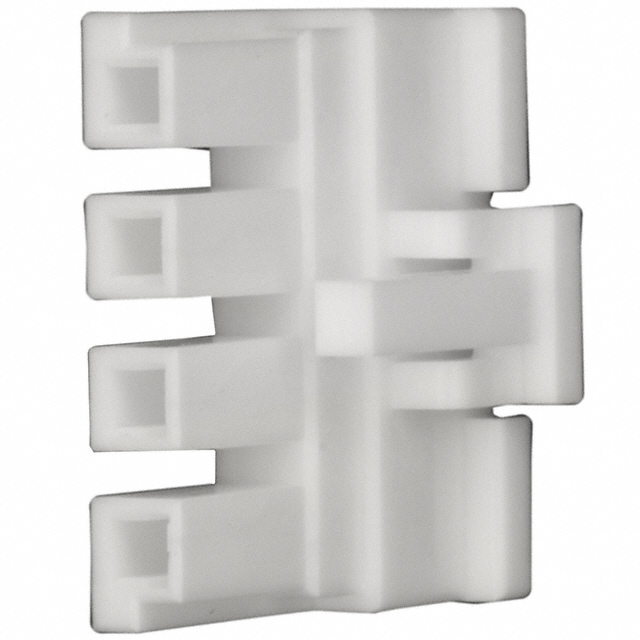

Hirose Electric Co Ltd DF5A-4S-5C	Contacts Not Included	Female Socket	1	Crimp	White	Receptacle	4	85 °C	-35 °C	Free Hanging (In-Line)	0.197 in	5 mm	Latch Holder	Nylon Polyamide (PA)
Hirose Electric Co Ltd DF5A-5S-5C(18)	Contacts Not Included	Female Socket	1	Crimp	Red	Receptacle	5	85 °C	-35 °C	Free Hanging (In-Line)	0.197 in	5 mm	Latch Holder	Nylon Polyamide (PA)

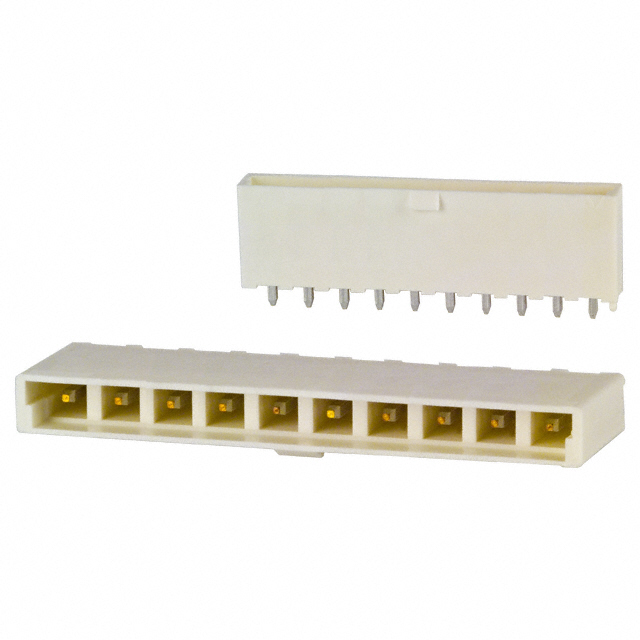

Hirose Electric Co Ltd DF5A-10P-5DSA(05)		Male Pin	1			Header	10	85 °C	-35 °C	Through Hole			Locking Ramp	Nylon Polyamide (PA)	22.5 mm	Tin	Beige	All	0.591 in	15 mm	Square	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.138 in	3.5 mm	Solder			0.197 "	5 mm	UL94 V-0	Board Guide

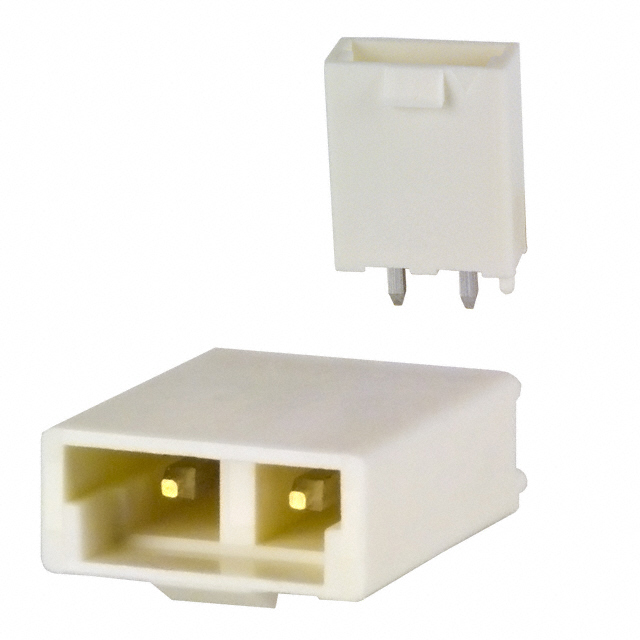

Hirose Electric Co Ltd DF5A-2P-5DSA(05)		Male Pin	1			Header	2	85 °C	-35 °C	Through Hole			Locking Ramp	Nylon Polyamide (PA)	22.5 mm	Tin	Beige	All	0.591 in	15 mm	Square	Shrouded - 4 Wall	Board to Cable/Wire	Brass	0.138 in	3.5 mm	Solder	39.4 µin	1 µm	0.197 "	5 mm	UL94 V-0	Board Guide
