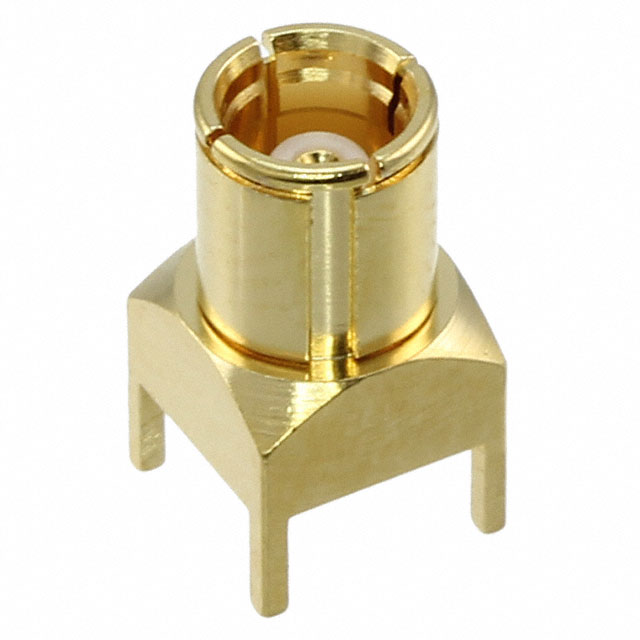

UM-PR-PC Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG RECPT
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Finish | Mating Cycles | Dielectric Material | Center Contact Material | Fastening Type | Connector Type | Contact Termination | Frequency - Max [Max] | Number of Ports | Connector Style | Housing Color | Shield Termination | Impedance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Brass | 85 °C | -30 ░C | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On | Female Socket Plug | Solder | 3 GHz | 1 | U.FL (UMCC) | Gold | Solder | 50 Ohms | Through Hole |
 Hirose Electric Co Ltd | Brass | 85 °C | -55 C | Gold | Gold | 1000 | Polytetrafluoroethylene (PTFE) | Brass | Snap-On | Female Socket Plug | Solder | 1 GHz | 1 | U.FL (UMCC) | Gold | Solder | 50 Ohms | Through Hole |
Hirose Electric Co Ltd | Brass | 85 °C | -30 ░C | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Snap-On | Female Socket Plug | Solder | 3 GHz | 1 | U.FL (UMCC) | Gold | Solder | 50 Ohms | Through Hole |
