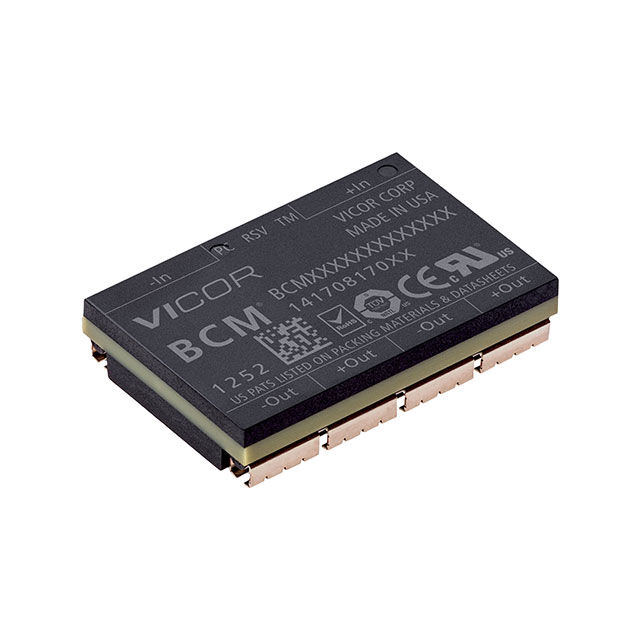

BCM384 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 38436040048325 W

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Applications	Features	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Package / Case	Voltage - Isolation	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Type
Vicor Corporation BCM384T480T325B00	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	325 W	ITE (Commercial)	OCP OTP OVP SCP UVLO	95 %	360 V	Through Hole	400 VDC	1	Module	4.242 kV	7.05 A	125 °C	-40 C	CE cURus TUV	48 V	Bus Converter Module
Vicor Corporation BCM384P120M1K5AC0
Vicor Corporation BCM384P120T800AC0	0.99 "	7.3 mm	25.1 mm	61 mm	2.4 in	0.29 in	800 W	ITE (Commercial)	OCP OTP OVP SCP UVLO		260 V	Through Hole	410 V	1	24-DIP Module	4.242 kV	68 A	125 °C	-40 C		12 V	Bus Converter Module
Vicor Corporation BCM384F480T325B00	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	325 W	ITE (Commercial)	OCP OTP OVP SCP UVLO	95 %	360 V	Surface Mount	400 VDC	1	Module	4.242 kV	7.05 A	125 °C	-40 C		48 V	Bus Converter Module
Vicor Corporation BCM384T120T300A00	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	300 W	ITE (Commercial)	OCP OTP OVP SCP UVLO	95.5 %	360 V	Through Hole	400 VDC	1	Module	4.242 kV	27.7 A	125 °C	-40 C		12 V	Bus Converter Module
Vicor Corporation BCM384P120T1K5ACR	0.99 "	7.3 mm	25.1 mm	61 mm	2.4 in	0.29 in	1500 W	ITE (Commercial)	OCP OTP OVP SCP UVLO	97.4 %	260 V	Through Hole	410 V	1	24-DIP Module	4.242 kV	125 A	125 °C	-40 C		12 V	Bus Converter Module
