BXRE-65 Series

Manufacturer: BRIDGELUX

Catalog

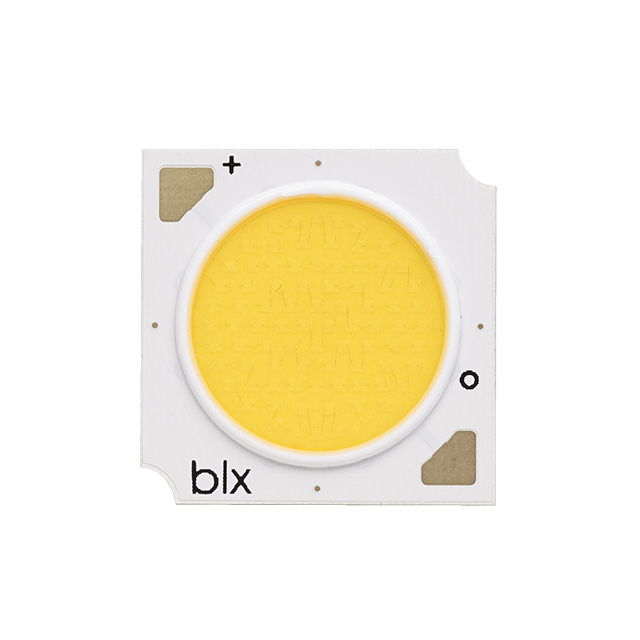

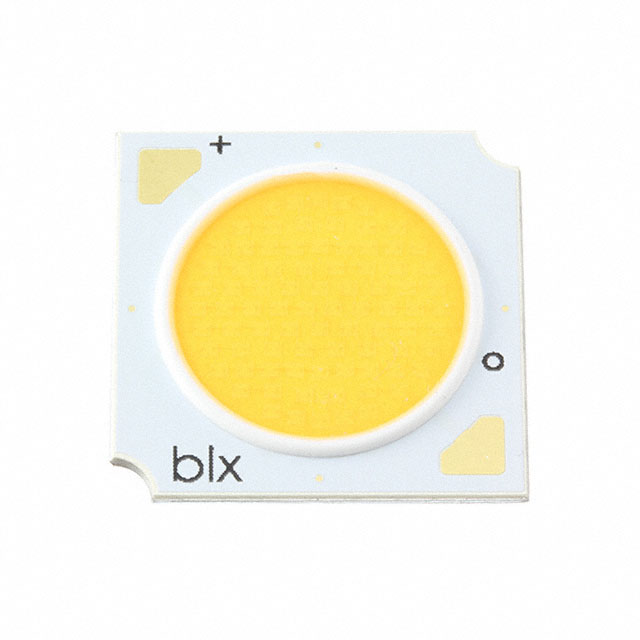

LED COB V13 CL WHT SQUARE 6500K

Part	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Viewing Angle	CRI (Color Rendering Index)	Type	CCT (K)	CCT (K)	Configuration	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Current - Test	Light Emitting Surface (LES) [diameter]	Height [z]	Temperature - Test
BRIDGELUX BXRE-65E2001-C-74	158 lm/W 159 lm/W	3383 lm 3389 lm	33.9 V	Cool White	1.26 A	120 °	80	Chip On Board (COB)	4-Step MacAdam Ellipse	6500 K	Square	19 mm	19 mm	Flat	630 mA	14 mm	1.7 mm	85 °C
BRIDGELUX BXRE-65E4001-B-73	158 lm/W	4833 lm	34 V	Cool White	1.8 A	120 °	80	Chip On Board (COB)		6500 K	Square	24 mm	24 mm	Flat	900 mA	19.2 mm	1.7 mm	85 °C

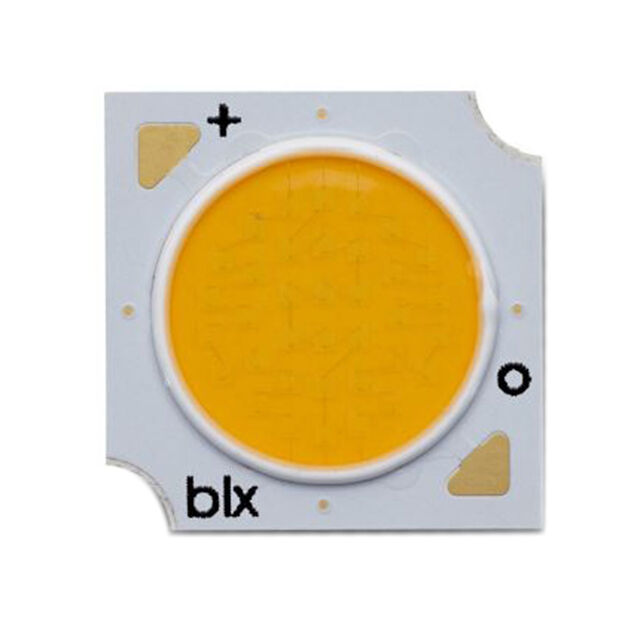

BRIDGELUX BXRE-65S1001-B-74	119 lm/W	1087 lm	33.7 V	Cool White	540 mA	120 °	95	Chip On Board (COB)	4-Step MacAdam Ellipse	6500 K	Square	13.5 mm	13.5 mm	Flat	270 mA	10.2 mm	1.7 mm	85 °C
BRIDGELUX BXRE-65C6501-C-74	161 lm/W 166 lm/W	11722 lm 12078 lm	50.7 V	Cool White	2.88 A	120 °	70	Chip On Board (COB)	4-Step MacAdam Ellipse	6500 K	Square	28 mm	28 mm	Flat	1.44 A	22.6 mm	1.7 mm	85 °C
BRIDGELUX BXRE-65C1001-B-73	155 lm/W	1416 lm	33.8 V	Cool White	540 mA	120 °	70	Chip On Board (COB)		6500 K	Square	13.5 mm	13.5 mm	Flat	270 mA	10.2 mm	1.7 mm	85 °C
BRIDGELUX BXRE-65E2001-C-73	158 lm/W 159 lm/W	3383 lm 3389 lm	33.9 V	Cool White	1.26 A	120 °	80	Chip On Board (COB)		6500 K	Square	19 mm	19 mm	Flat	630 mA	14 mm	1.7 mm	85 °C

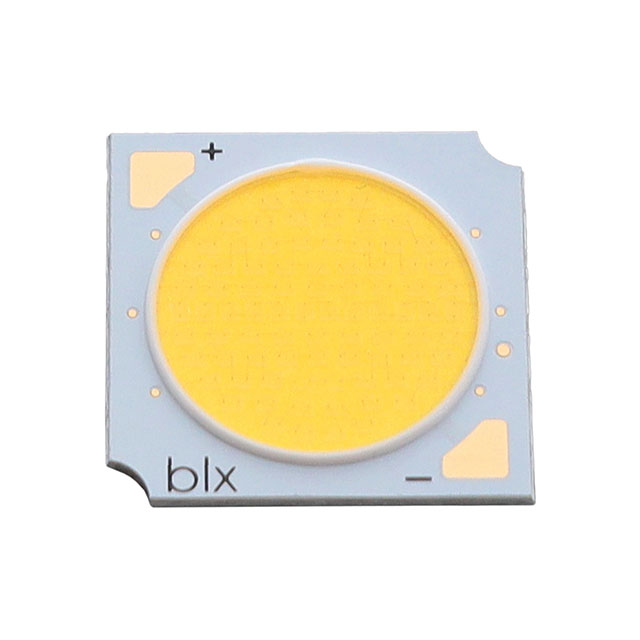

BRIDGELUX BXRE-65E2001-C-83	181 lm/W	3015 lm	33.4 V	Cool White	1.75 A	120 °	80	Chip On Board (COB)		6500 K	Square	19 mm	19 mm	Flat	500 mA	14.8 mm	1.65 mm	25 °C
BRIDGELUX BXRE-65C4001-C-74	159 lm/W	6340 lm	34 V	Cool White	2.34 A		70	Chip On Board (COB)	4-Step MacAdam Ellipse	6500 K	Square	24 mm	24 mm	Flat	1.17 A	19.2 mm	1.7 mm	85 °C
BRIDGELUX BXRE-65S0801-D-74	128 lm/W	771 lm	17.2 V	Cool White	700 mA	120 °	98 98	Chip On Board (COB)	4-Step MacAdam Ellipse	6500 K	Square	12.5 mm	12.5 mm	Flat	350 mA	8.1 mm 9 mm	1.7 mm	25 °C
BRIDGELUX BXRE-65C6501-D-73	164 lm/W 169 lm/W	7656 lm 7904 lm	33.4 V	Cool White	2.8 A	120 °	70	Chip On Board (COB)		6500 K	Square	28 mm	28 mm	Flat		22.6 mm	1.7 mm	85 °C
