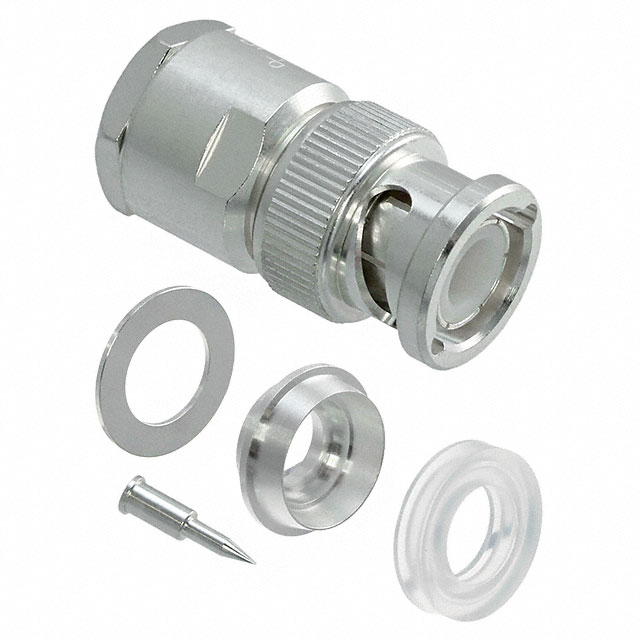

3CW-P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN BNC PLUG STR 50 OHM SOLDER
| Part | Mating Cycles | Center Contact Plating | Body Finish | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Impedance | Fastening Type | Housing Color | Mounting Type | Frequency - Max [Max] | Contact Termination | Number of Ports | Connector Style | Shield Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 1000 | Silver | Silver | Brass | Polytetrafluoroethylene (PTFE) | -30 ░C | 60 °C | Plug Male Pin | 50 Ohms | Bayonet Lock | Silver | Free Hanging (In-Line) | 4 GHz | Solder | 1 | BNC | Clamp | Brass |
 Hirose Electric Co Ltd | 1000 | Gold | Nickel | Brass | Polytetrafluoroethylene (PTFE) | -40 C | 85 °C | Plug Male Pin | 50 Ohms | Bayonet Lock | Silver | Free Hanging (In-Line) Right Angle | Solder | 1 | BNC | Clamp | Brass |
